Description

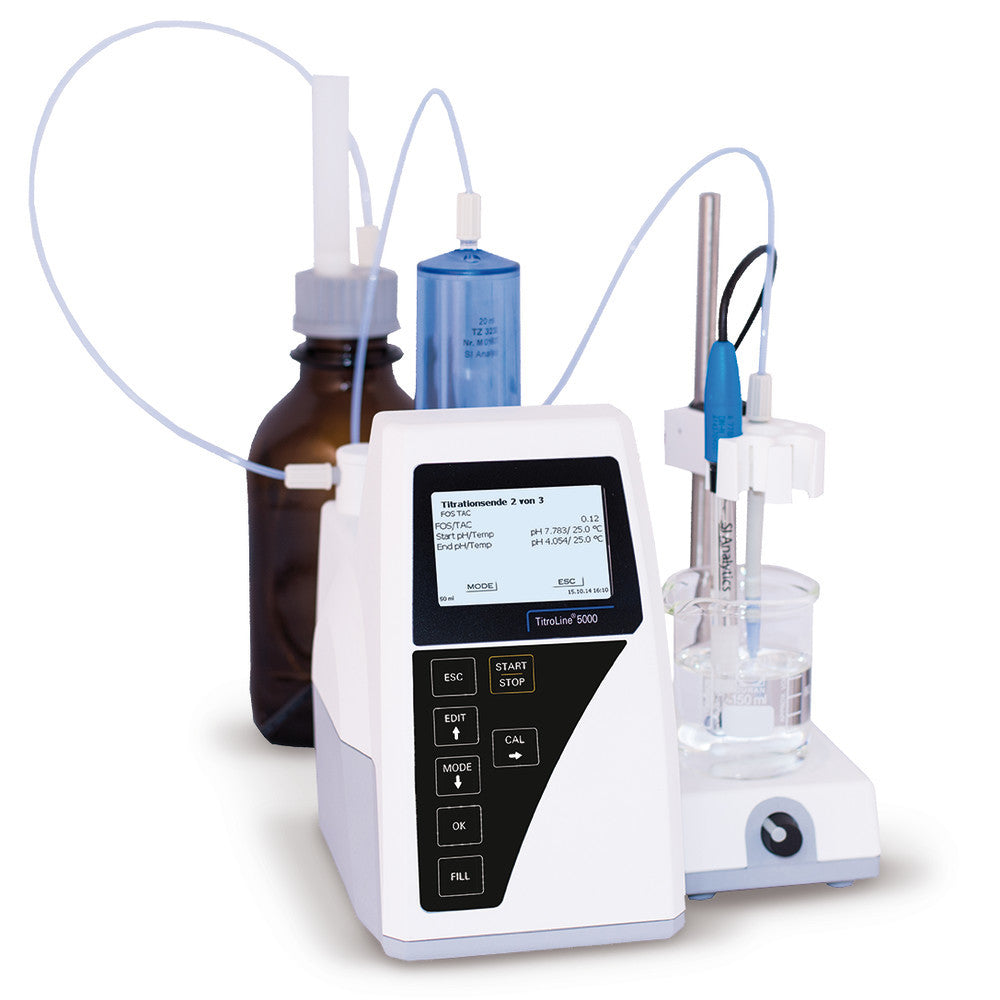

TitroLine® 5000, set 1, without electrode
Very easy to use automatic titrator for pH and mV titration: select saved standard method, connect electrodes and press Start. In just a few minutes, the sample is titrated and the result is displayed on the screen. Result can also be output as a PDF file on USB.
Range of applications: current redox titrations, such as iodine and peroxide value, permanganate index, COD and other applications (Set 1 + metal combination electrode Pt 62 RG).
Delivery incl. support rod, electrode/burette tip holder, hose kit and titration syringe, test tubes, magnetic stirrer, magnetic stirring rod, screw cap with GL 45 thread, NS 14.5/M8x1 adapter, drying tube, USB data cable and mains adapter.Electrode not included, please order separately.
Technical Information
| Version | Set 1 |
| Type | TitroLine® 5000 |
| Max. piston stroke | 20 ml |
| Volume range | 0,000–9999.999 ml |
| Display resolution | 0,005–0,025 ml |
| Dosing speed | 40 ml/min |
| Dosing accuracy | systematically 0.15% incidentally 0.05% |
| pH measuring range | -3 to +17 |
| Voltage measuring range | -1900 to +1900 mV |
| Temperature measuring range | -30 to +115 °C |
| pH resolution | 0,01 |
| Voltage resolution | 1 mV |
| Temperature resolution | 1 °C |
| pH accuracy | ±0.05 |
| Voltage accuracy | ±1 mV |
| Temperature accuracy | ±0.5 °C |
| Connection | pH: DIN 19262 °C: 2 x 4 mm banana plugs (NTC 30 kΩ, PT 1000) |
| Calibration points | pH 1/2/3 |
| Port | 2 x RS 232-C, 1 x USB A, 1 x USB B |
| W x D x H | 135 x 205 x 310 mm |
| Mains connection | 100-240 V, 50/60 Hz |
