Description

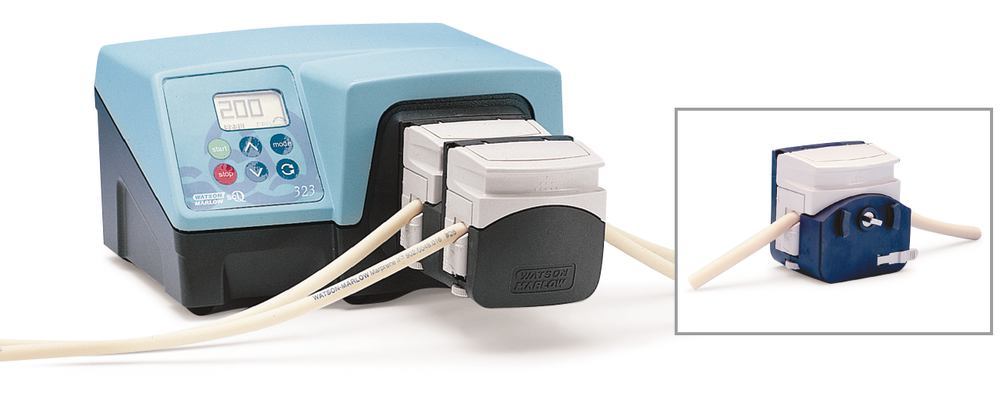

Tube Pump Sci-Q 323, 15 - 400/min, incl. 3-roll-end-pump head
Particularly suitable for general applications in laboratory and research applications.
- Quick and easy hose laying thanks to flip-top pump head
- Digital speed control
- Manual control
- Easy-to-read display and washable membrane keyboard
- Chemical-resistant housing
- Maintenance-free, quiet motor
- Usable with hoses with a wall thickness of 1.6 mm
- Can be expanded with additional pump heads to a maximum of six parallel channels
| Delivery rate depending on the hose size and the number of rollers in the pump head: | |||
| Inner Ø (mm) | Delivery rate (ml/min) | Max. pump heads | |
| 3-roller | 4-roller | ||
| 0.5 | 0.45-12 | 0.45-12 | 6 |
| 0.8 | 1.1-28 | 0.90-24 | 6 |
| 1.6 | 4.1-110 | 3.8-100 | 4 |
| 3.2 | 15-400 | 13-340 | 2 |
| 4.8 | 33-880 | 29-760 | 2 |
| 6.4 | 54-1400 | 45-1200 | 1 |
| 8 | 75-2000 | 60-1600 | 1 |
Optional accessory (please order separately): additional pump heads for multichannel operation and pump heads with four rollers for lower pulsation.
Delivery incl. one 3-roller end pump head. Without pump hoses, please order separately.
Technical Information
| Type | Sci-Q 323 |
| Pump type | Sci-Q 323 |
| Delivery rate | 0,45-2000 ml/min |
| Speed | 15-400 rpm |
| Operating temperature | +5 - +40 °C |
| Display | digital |
| Noise level | <70 db |
| L x W x H | 225 x 230 x 132 mm |
| Weight | 4,7 kg |
| Mains connection | 120/230 V, 50/60 Hz |
