Description

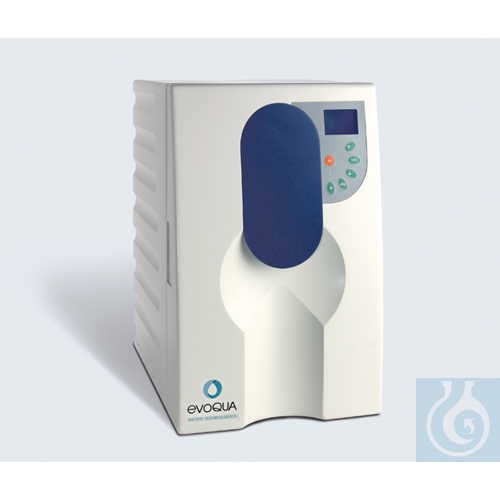

UltraClear RO 30 Reverse osmosis system
Pure-water production from softened or hardness-stabilized drinking water
It mainly consists of:
1 solenoid valve for raw water
1 fine filter; housing made of plastic, including active carbon fine filter cartridge AK/5µm, accessible from the front
1 pressure switch for high pressure pump
1 high pressure pump made of Ms, with fittings made of stainless steel, incl. alternating current motor mounted on vibrating dampers
1 manometer indicating operating pressure
1 high performance membrane module made of polyamide on a polysulphone basis, including pressure pipe with end caps
1 solenoid valve to discard permeate when limits are exceeded
1 restriction to limit concentrate quantity
1 electronic control incl. operating field with membrane keyboard integrated in front panel, plain text to display:
- conductivity permeate
- conductivity post-treatment (if available)
- level storage tank, displays in percent 3 selectable values for ON/OFF and dry run protection of external permeate feed pump
- status indication by symbols
- recommended maintenance intervals and cartridge replacements
- German and English language available
- failure message displays (lack of raw water, LF1/LF2)
- RS 232 interface (processing software optional)
1 set connection hoses
1 operator's manual
Technical data:
System performance:
RO Production rate at 15°C: 30 l/h
Ratio permeate/concentrate: 50-75 %
Salt retention rate: normally 98 %
Salt retention rate: minimum 96 %
Rejection rate for bacteria: 95 %
Rejection rate for particles: 99 %
Feed water specification:
Flow rate: max 75 l/h
Pressure: 0,1 - 5 bar
Condictivity: < 2000 µS/cm
CO2: < 15 mg/l
Colloid index (SDI): < 3
Free Chlorine: < 0,1 mg/l
Total iron: < 0,1 mg/l
Water temperature: 5 - 30°C
Technical data:
Operating pressure: 6 - 12 bar
Electrical power: 100-240 VAC, 50-60 Hz
Power consumption: 0,2 - 0,35 kW/h
Ambient temperature allowed: 5 - 35°C
Noise level: 55 dBA
Connections:
feed water: 5/16 hose
permeate: 5/16 hose
drain: 5/16 hose
flush: 5/16 hose
Dimensions and weight:
Height: 530 mm
Width: 340 mm
Depth: 420 mm
Dispatch weight: 32 kg
Please note:
The performance is based on a raw water salt content of max. 1000 mg/l (TDS) equivalent to a conductivity of 2000 µS/cm at 15°C. From 10°dH or higher, a softener is recommended.
All a. m. components are assembled into a complete system; the Ultra Clear RO can be fitted and installed without the aid of a factory service engineer.
The feed water specifications are guidelines. The pure water specifications can only be guaranteed, if a drinking water analysis is available for the plant location and all other relevant
parameters have been evaluated.
