Description

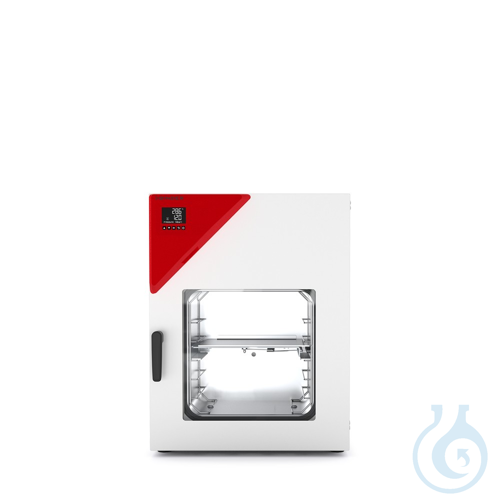

Vacuum drying oven VD056-230V is a BINDER VD-series vacuum drying cabinet designed for gentle drying under exact temperature control. The working range covers +9 °C above ambient temperature up to +220 °C, with a controller that digitally displays pressure and temperature. Program-controlled drying monitoring includes automatic ventilation when the process ends, and an internal data logger allows measured values to be exported via USB in an open format. One aluminium expansion rack is individually positionable; patented expansion-rack technology ensures optimal heat transfer, and the interior is easy to clean. Universal ventilation supports inert gas or ambient air, while a DN 16 feed-through permits external measuring devices. A spring-mounted safety glass pane with splinter protection and a large viewing window (optional interior lighting) aid observation during operation. Ethernet provides the computer interface alongside USB connectivity. With a nominal volume of 55 l and 230 V operation (Euro plug type C), this model from manufacturer Binder suits laboratory vacuum drying where larger chamber capacity is required. Controllable parameters include air pressure and vacuum; program memory is available. Gross weight is 107 kg (net 105 kg).
This article is part of Muffle & tube furnaces, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 55 l
- Maximum operating temperature: +220 °C
- Temperature range: +9 °C above ambient to +220 °C
- Controllable parameters: air pressure, vacuum
- Program memory: yes
- Technical Information Sheet:
