Beschrijving

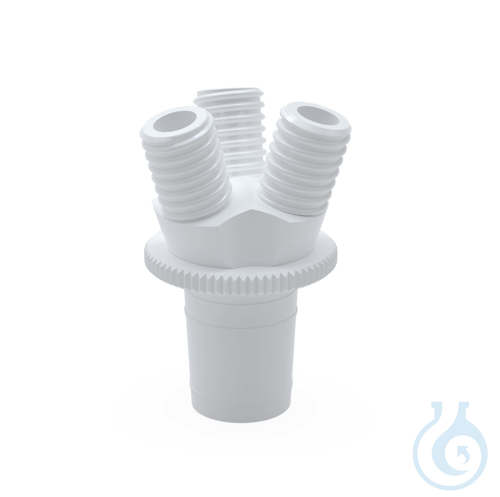

BOLA reactor ground joint multiple distributor for NS 19/26 is a fully PTFE laboratory fitting that turns a standard ground joint into three GL 14 connection ports. The ground-joint core features raised sealing rings on the exterior and a knurled grip that aids firm insertion and straightforward removal. Three GL threaded necks allow connection of hard-walled hoses and tubes made of glass, plastic or metal via BOLA laboratory screw fittings, each rated for a maximum outer hose diameter of 8 mm. Constructed entirely from PTFE, the distributor ensures that the medium contacts only PTFE and therefore offers universal chemical resistance in reactor and apparatus applications. Supplied as a single piece with a net weight of 0,0401 kg, it fits NS 19/26 joints commonly used on medium-scale laboratory reactors, condensers and multi-port heads. Manufacturer Bohlender designs this component for inert multi-line feed, venting or sampling without metallic or elastomeric wetted surfaces. It supports flexible manifold layouts while maintaining a chemically inert flow path throughout the distributor body.
This article is part of Reaction vessels & jacketed vessels, in Beakers & flasks.
Key features
- Pack size: 1 pc(s)
- Material: PTFE (complete)
- Ground joint: NS 19/26
- Necks: 3 x GL 14
- Max. hose outer diameter: 8 mm
Recent bekeken
Misschien vind je dit ook leuk
Questions about BOLA Reactor Multiple Distributor with Ground Joint, NS 19/26, 3x GL14, max. Ø 8
What is this article?
BOLA Reactor Multiple Distributor with Ground Joint, NS 19/26, 3x GL14, max. Ø 8 is the article on this page. Luminix Health distributes Bohlender for laboratory use. It sits in Reaction vessels & jacketed vessels, inside Beakers & flasks, in Labmateriaal.
A reaction vessel is the flask a synthesis actually runs in, sometimes jacketed so a fluid can heat or cool the wall. The joints, the working volume and the jacket connections are the specification. It is not a storage bottle.
A beaker is an open working vessel: easy to pour, poor as a measure. An Erlenmeyer flask has a flat base and a conical wall so a liquid can be swirled without climbing out. A round-bottom flask is for heating under a condenser, because the heat meets a curved wall and the joint at the neck connects to the rest of the glassware. Borosilicate is the glass that survives the temperature change. These forms are listed under ISO laboratory glassware.
