Beschrijving

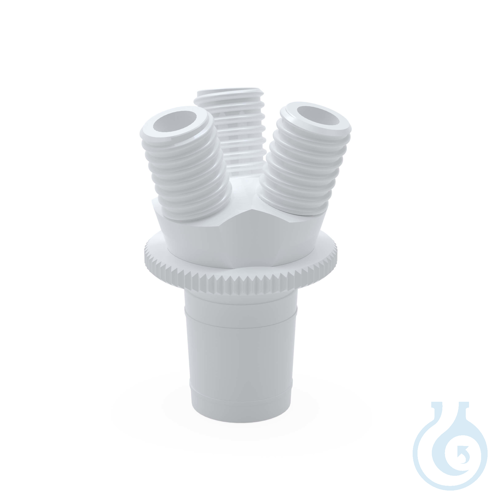

BOLA Reactor Ground Joint Multiple Distributor NS 45/40 with three GL 18 necks is an all-PTFE laboratory fitting designed for multi-line connections on larger reactor ground joints. Its ground joint core incorporates raised sealing rings on the exterior and a knurled grip for easy release after operation. Three GL threaded necks accept hard-walled tubing and pipes in glass, plastic or metal when fitted with BOLA laboratory screw fittings, each supporting a maximum outer hose diameter of 10 mm.
This article is part of Reaction vessels & jacketed vessels, in Beakers & flasks.
The medium contacts PTFE exclusively, delivering universal chemical resistance for aggressive laboratory media. Dimensions correspond to ground joint NS 45/40, with three GL 18 necks configured for three independent lines up to 10 mm outer diameter. Supplied as one piece with a net weight of 0,1448 kg, this component from manufacturer Bohlender enables chemically inert multi-port distribution at the reactor neck without metal or other materials in the wetted path. It is well suited to reactor workflows that require reliable PTFE-based routing of reagents, gases or process streams through hard-walled laboratory tubing on NS 45/40 joints.
Key features
- Pack size: 1 pc
- Material: PTFE
- Ground joint: NS 45/40
- Necks: 3 x GL 18
- Max. hose outer Ø: 10 mm
Recent bekeken
Misschien vind je dit ook leuk
Questions about BOLA Reactor Multiple Distributor with Ground Joint, NS 45/40, 3x GL18, max. Ø 1
What is this article?
BOLA Reactor Multiple Distributor with Ground Joint, NS 45/40, 3x GL18, max. Ø 1 is the article on this page. Luminix Health distributes Bohlender for laboratory use. It sits in Reaction vessels & jacketed vessels, inside Beakers & flasks, in Labmateriaal.
A reaction vessel is the flask a synthesis actually runs in, sometimes jacketed so a fluid can heat or cool the wall. The joints, the working volume and the jacket connections are the specification. It is not a storage bottle.
A beaker is an open working vessel: easy to pour, poor as a measure. An Erlenmeyer flask has a flat base and a conical wall so a liquid can be swirled without climbing out. A round-bottom flask is for heating under a condenser, because the heat meets a curved wall and the joint at the neck connects to the rest of the glassware. Borosilicate is the glass that survives the temperature change. These forms are listed under ISO laboratory glassware.
