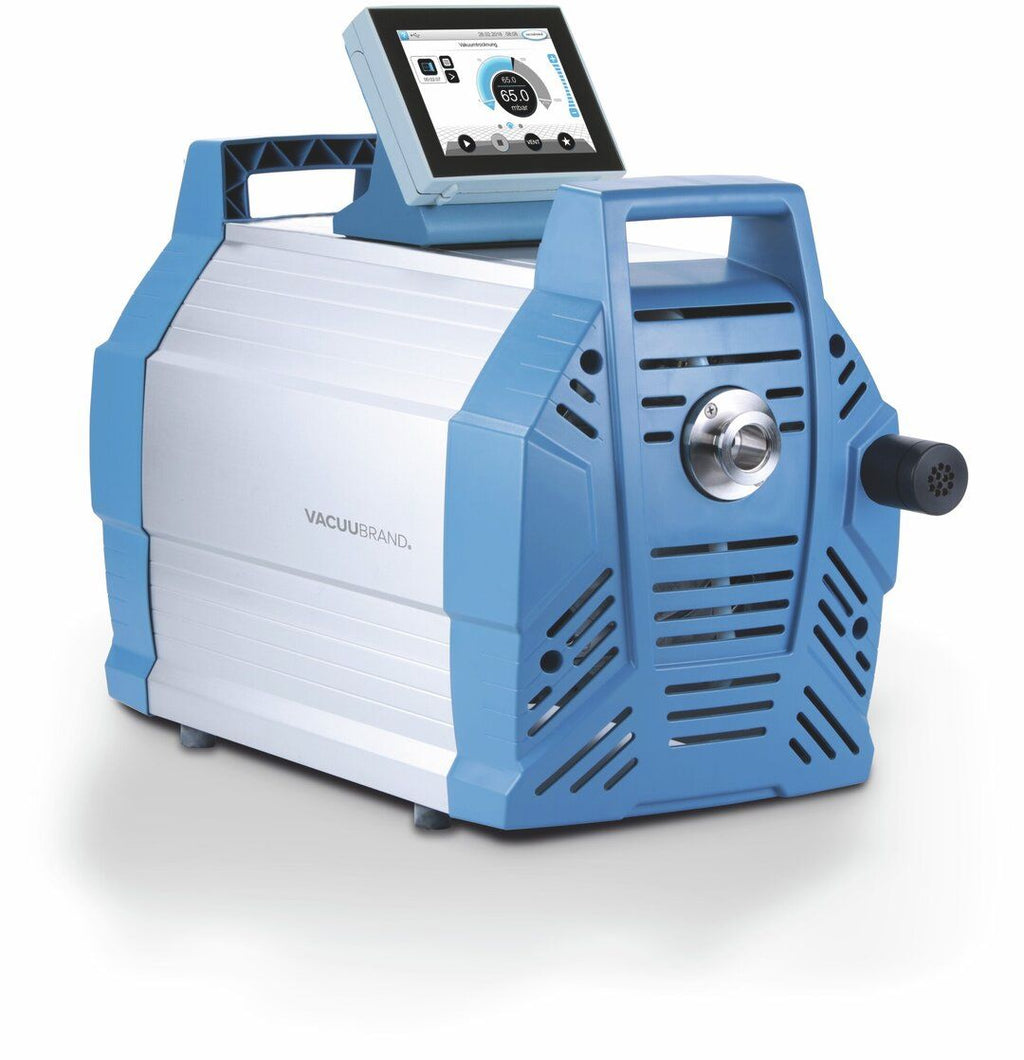

MD 12 NT VARIO select, CEE

This three-stage diaphragm pump is an powerful solution for continuous, oil-free pumping of non-corrosive gases to a vacuum level as deep as 1.5 mbar. With its high pumping speed, this pump is an excellent option for higher gas load applications or rapid pump down of vacuum chambers. All wetted parts are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of applications with non-corrosive gases. The MD 12 NT VARIO select automatically adapts its motor speed to hold the desired vacuum level. That also means the pump is whisper-quiet and generates ultra-low vibrations, and has high leak tightness. The highly flexible fabric-reinforced double FKM diaphragm is ideal for extended operating life. The VARIO design includes the variable speed pump and the VACUU·SELECT vacuum controller with an external gauge head. The demand-responsive motor speed control on VARIO models further extends the already long lifetimes of diaphragms and valves. And oil-free operation means that there is no risk of contamination from backstreaming.

Key features

• Max. pumping speed 50 Hz: 13.4 m 3 /h
• Max. pumping speed 60 Hz: 7.9 cfm
• Ultimate vacuum: 1.5 mbar / 1.1 torr
• Number of heads: 8
• Number of stages: 3
• Vacuum controller: VACUU·SELECT
• Lower ambient temperature (operation): 10 °C
• Upper ambient temperature (operation): 40 °C
• Lower ambient temperature (storage): -10 °C
• Upper ambient temperature (storage): 60 °C
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: small flange KF DN 25
