Description

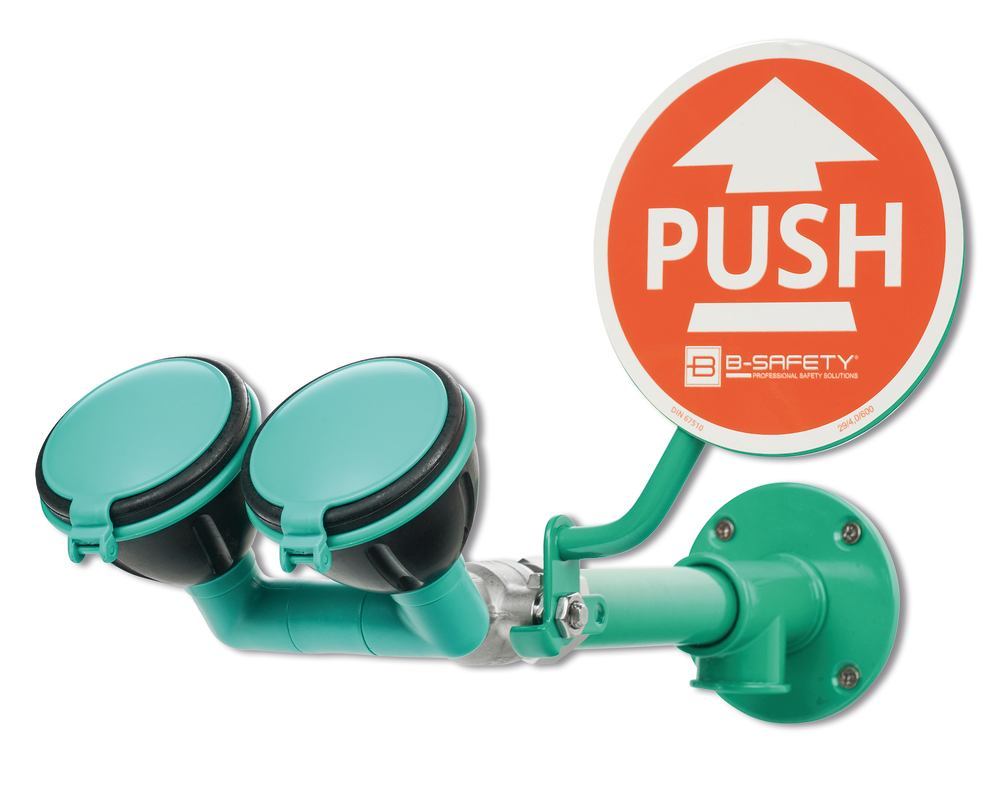

Eye shower model 4, wall mounting, L 130 mm, DIN 67510, W 330 x D 330 mm
DIN-DVGW tested and approved. Acc. to DIN EN 15154-2:2006 and ANSI Z358.1-2014.Two shower heads angled at 45°, distributor fork and wall flange (water connection ¾″ internal thread) made of brass with chemical-resistant green powder coating. With a large release lever of 130 mm in length, with a large signal “PUSH”, photoluminescent as per DIN 67510. Maintenance-free ball valve, 90° operation, made of stainless steel, not self-closing.
- With rubber sleeves that protect against injuries
- Dust cover caps that open automatically upon actuation
- Integrated flow regulator for constant water jet, even with fluctuating pressure
- Extremely wide-spraying shower heads ensure water distribution over a large area
- Large holes in the shower heads protect against calcification
- Shower heads can be easily removed for maintenance purposes
- Adhesive information label for eye shower, 150 x 150 mm
Technical Information
| Flow rate | 14–16 l/min |
| Mounting | wall |
