Description

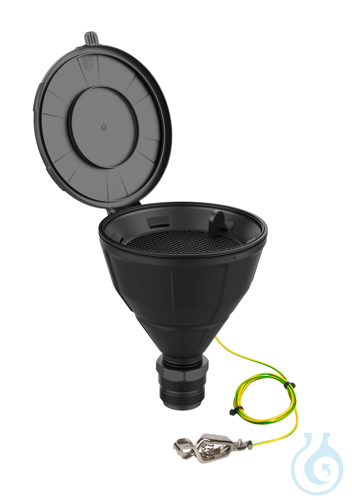

Ball funnel "ARNOLD" V2.0 with double thread R2" BSP/G2" (m) plus 2" Tri-Sure (m) is an electrically dissipative PE-HD safety funnel engineered for safe disposal of hazardous liquid waste. The 200 mm diameter funnel includes splash protection, a removable sieve and an earthing cable. From manufacturer SCAT, the unit combines two independent safety mechanisms—an integrated ball in the funnel basin and a sealing ring incorporated in the hinged lid—to prevent the release of toxic gases. Electrically conductive high-density polyethylene enables static charges to be discharged safely through the grounding cable, rendering the funnel particularly suitable for explosive or flammable media. A hinged lid with sealing ring secures the funnel when idle. The optimised sieve retains larger particles and offers a stable surface for laboratory bottles, while the enhanced splash guard with integrated air channels reduces bubble formation. The ball valve opens automatically on filling and a safety lance (individually shortenable) ensures clean discharge of liquid waste. All main components are detachable for easy cleaning. Delivered as 1 piece.
This article is part of Funnels (plastic, glass & steel), in Funnels.
Key features
- Pack size: 1 pc
- Product type: Ball funnel ARNOLD V2.0
- Thread: R2" BSP/G2" (m) + 2" Tri-Sure (m)
- Material: PE-HD electrically dissipative
- Funnel diameter: 200 mm
- Features: Splash guard, removable sieve, earthing cable, hinged lid
- Technical Information Sheet:
Recently viewed
You may also like
Questions about Funnel ''ARNOLD'', ball-valve, V2.0, R2'' BSP/G2'', electrostatic conductive
What is this article?
Funnel ''ARNOLD'', ball-valve, V2.0, R2'' BSP/G2'', electrostatic conductive is the article on this page. Luminix Health distributes SCAT for laboratory use. It sits in Funnels (plastic, glass & steel), inside Funnels, in Labware.
This is the ordinary funnel, in plastic, glass or steel, used to guide a liquid or a powder into a narrower mouth. The cone angle, the stem bore and the material are the choices. It does not, by itself, filter.
A funnel guides a liquid or a powder into a narrower mouth. A filter funnel holds a paper. A Büchner funnel is the flat perforated plate used with vacuum. A separating funnel has a stopcock so two liquid layers can be run off one at a time. A dropping funnel adds a reagent slowly into a reaction. The bore and the stopcock are the parts that matter. This glassware is listed under ISO laboratory glassware.
