Description

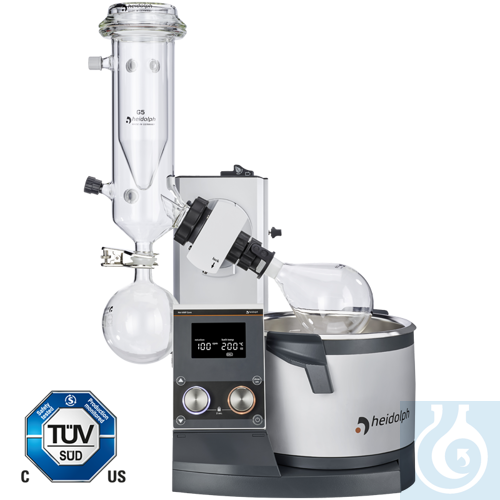

Hei-VAP Core ML G5 is a motor-lift rotary evaporator configured with a G5 dry ice condenser and supplied with an EU power cable for laboratory solvent evaporation and concentration work. The operating concept is deliberately reduced to the essentials, giving direct access to rotation speed and heating bath temperature at all times. A clear digital display shows actual and set values, while two separate rotary knobs with dynamic control allow fast turns for large adjustments and slow turns for precise fine-tuning. A lock function prevents accidental changes, and LED rings make active status easy to recognise even from a distance. Immersion depth is adjustable up to 155 mm and the evaporator flask inclination can be set from 20° to 80°. A standby function and residual heat warning for bath temperatures above 50 °C support safer daily use; the standby button stops all functions and raises the flask out of the bath on motor-lift models. This Hei-VAP Core unit from manufacturer Heidolph is offered as a complete single-piece package for routine rotary evaporation tasks.
This article is part of Rotary evaporators, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Lift type: Motor lift
- Condenser: G5 dry ice condenser
- Cable variant: EU cable
- Immersion depth: up to 155 mm
- EAN: 4255661406791
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about Hei-VAP Core ML G5 -- EU-plug
What is this article?
Hei-VAP Core ML G5 -- EU-plug is the article on this page. Luminix Health distributes Heidolph for laboratory use. It sits in Rotary evaporators, inside Pumps, vacuum & evaporation, in Lab instruments.
A rotary evaporator spins a flask under vacuum so solvent boils off a sample at a modest temperature. The flask size, the condenser type and the vacuum the seal can hold are the specification. Bumping is a flask that was too full or a vacuum that arrived too fast.
A vacuum pump lowers the pressure above a liquid so it boils at a lower temperature. That is the point of a rotary evaporator: solvent leaves a sample without cooking it. A diaphragm pump or a rotary-vane pump is chosen by the vacuum it reaches and by whether solvent vapour will destroy it. A peristaltic pump moves liquid by squeezing a tube, so the liquid touches only the tube. A barrel pump transfers a larger volume from a drum. The glassware on the evaporator is indexed under ISO laboratory glassware. Solvent identity is on PubChem.
