Description

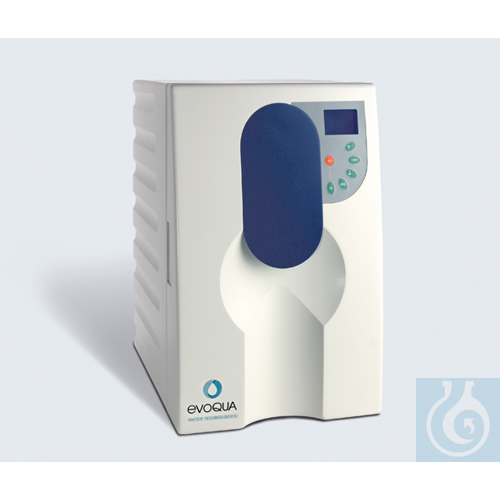

Ultra Clear RO EDI systems combine water purification, reverse osmosis and EDI technology.
Ionpure EDI technology provides a consistent, cost-effective supply of pure water.
The system continuously produces pure water from potable water using reverse osmosis and electro-deionization with a conductivity of up to 0.055 µS/cm.
The electro-deionization stage also reduces the TOC and endotoxin content as well as the bacterial counts.
Feed water requirements:
Hardness-free or hardness-stabilized feed water.
Demand: 15 - 22 l/h
Inlet pressure: 0.1 - 5 bar
Temperature: 5 - 30C
Conductivity: < 1400 µS/cm
TDS: 750 mg/l
SDI: < 3
Iron (total content): < 0.1 mg/l
free chlorine: < 0,1 mg/l
CO2: < 10 mg/l
SiO2: < 10 mg/l
Technical data:
Operating pressure: max. 6 bar
power consumption: 0,2 kW
electr. connection: 100-240 V, 50-60 Hz
Requirement for ambient conditions: 5 - 35°C
Connections:
Raw water: 3/4''
Pure water: d= 8 mm
Drain concentrate: d= 8 mm
Drain brine: d= 6 mm
Dimensions and Weight:
Height: 530 mm
Width: 340 mm
Depth: 420 mm
Weight: 31 kg
Please note:
The performance is based on a raw water salt content of max. 750 mg/l (TDS) equivalent to a conductivity of 1400 µS/cm at 15°C. From 10°dH or higher, a softener is recommended.
The Ultra Clear RO EDI can be put into operation without the help of a
factory service engineer.
The feed water specifications are guidelines. The pure water specifications can only be guaranteed, if a drinking water analysis is available for the plant location and all other relevant
parameters have been evaluated.
Applications include feeding dishwashers, autoclaves, ultrasonic systems and the production of media, dilution reagents and buffers.
Key features
- Technical Information Sheet:
