Description

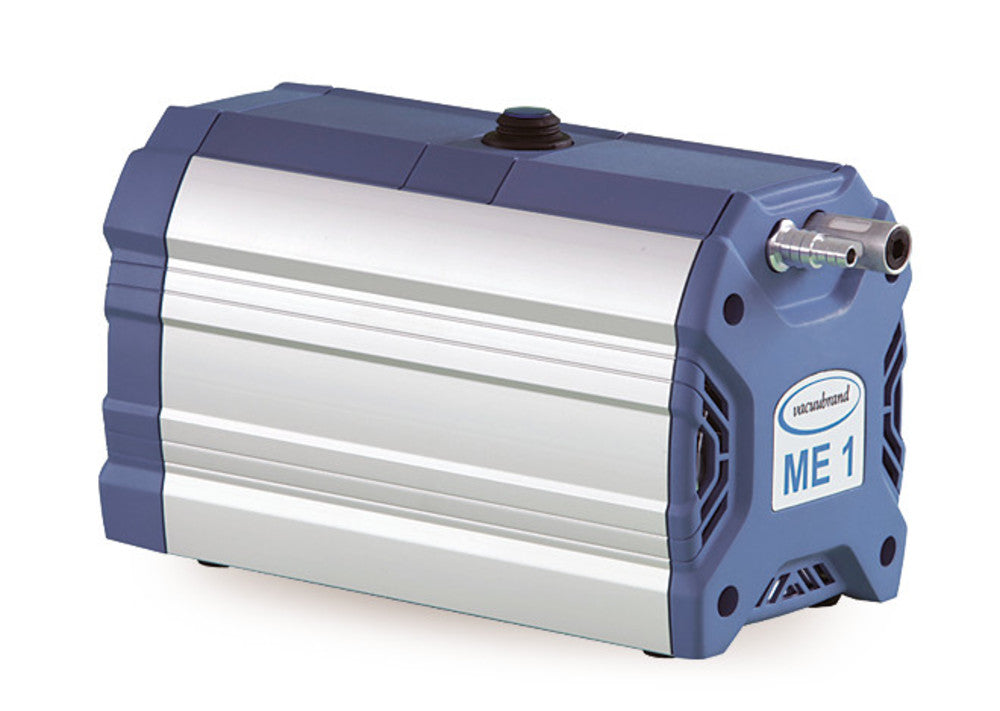

Vacuum Membrane pump ME 1, vacuum 100 mbar, silenser G 1/8 inch
Ideal for pumping and evacuating gases and vapours.
- Simple to use with central power button mounted on pump housing
- Extremely quiet and low vibration
- Requires minimal benchtop space
- Long diaphragm service life
Optional accessories (please order separately): fine adjustment head with manual vacuum control via leakage air, rotatable in different directions for optimal visibility.
Wide range of applications for neutral gases and vapours.
Technical Information
| Type | ME 1 |
| Cylinder | 1 |
| Steps | 1 |
| Suction capacity (l/min) | 12.0 |
| Suction capacity (m³/h) | 0.7 |
| End vacuum (abs.) | 100 mbar |
| Media temperature | +10 - +40 °C (>100 mbar), 0 - +60 °C (<100 mbar) °C |
| Inlet connection | for hose inner Ø 6-10 mm |
| Outlet connection | silencer/G 1/8″ |
| Motor power | 40 W |
| Ambient temperature | +10 - +40 °C |
| IP rating | 40 |
| Materials in contact with media | aluminium ETFE |
| W x D x H | 121 x 247 x 145 mm |
| Weight | 5 kg |
| Mains connection | 230 V, 50/60 Hz |
