Description

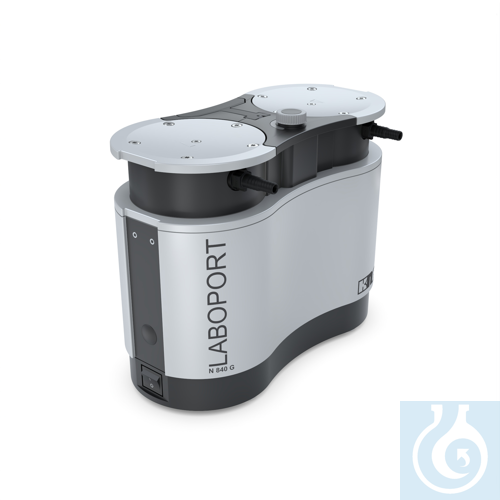

Vacuum pump LABOPORT® type N 840 G is a chemically resistant diaphragm vacuum pump for laboratory work with aggressive and corrosive gases and vapours. It delivers a flow rate of up to 2,04 m³/h and an ultimate vacuum of 6 mbar abs. The TFM™ PTFE pump head combined with a PTFE-coated membrane provides high chemical resistance, while the integrated gas ballast valve and elevated vapour/condensate tolerance support demanding processes. Manual speed control via rotary knob allows precise adjustment, energy-efficient running and quiet operation. Typical applications include rotary evaporation, distillation, gel drying and degassing. A three-colour status display indicates operating, standby or fault states. The compact footprint saves bench space and the easy-to-clean surface simplifies maintenance. The oil-free design ensures uncontaminated transfer, evacuation and compression; optional separators or condensers can be added later. ATEX-compliant for internal atmosphere only (II 2/-G IIB+H2 T3), this model from manufacturer KNF belongs to the new LABOPORT® generation of membrane vacuum pumps.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 set
- Flow rate: up to 2,04 m³/h
- Ultimate vacuum: 6 mbar abs.
- Pump head: TFM™ PTFE with PTFE-coated membrane
- Control: integrated speed regulation via rotary knob
- Gas ballast: integrated valve
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about Vacuumpump, LABOPORT® Type N 840, G - chemical resistant
What is this article?
Vacuumpump, LABOPORT® Type N 840, G - chemical resistant is the article on this page. Luminix Health distributes KNF for laboratory use. It sits in Vacuum pumps, inside Pumps, vacuum & evaporation, in Lab instruments.
A laboratory vacuum pump lowers pressure for filtration or evaporation. A diaphragm pump tolerates solvent vapour better than an oil-sealed rotary vane pump, and it reaches a milder vacuum. The ultimate vacuum and the flow, and whether the wetted path survives the solvent, are the choices.
A vacuum pump lowers the pressure above a liquid so it boils at a lower temperature. That is the point of a rotary evaporator: solvent leaves a sample without cooking it. A diaphragm pump or a rotary-vane pump is chosen by the vacuum it reaches and by whether solvent vapour will destroy it. A peristaltic pump moves liquid by squeezing a tube, so the liquid touches only the tube. A barrel pump transfers a larger volume from a drum. The glassware on the evaporator is indexed under ISO laboratory glassware. Solvent identity is on PubChem.
Which category should I open next?
The category is Pumps, vacuum & evaporation. The sub-category is Vacuum pumps. The catalogue is Lab instruments.
Shelves beside this one are Rotary evaporators, Peristaltic & dosing pumps, Vacuum & pump accessories, Drum, barrel & transfer pumps and Pumps (other) & accessories.
What should I check before I order?
When this page shows a safety data sheet, use that manufacturer file. Hazard text does not belong in the sales description. For a pack size, a grade or a certificate that is not on the page, send a quote request or contact the team.
