Description

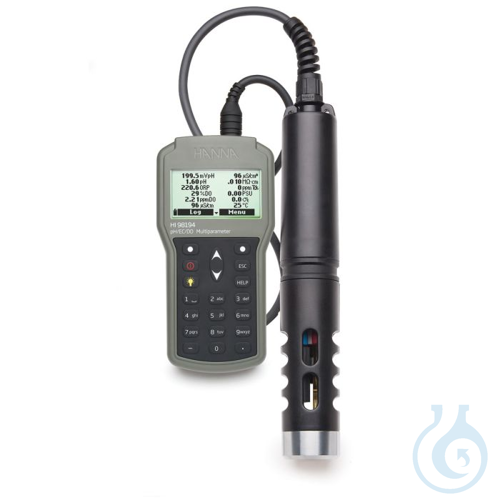

Waterproof multiparameter handheld meter with HI7698194/20 probe and 20 m cable is designed for precise on-site determination of water quality at greater immersion depths. Using its digital multisensor probe, the unit can measure and display up to 12 parameters at once: pH, redox potential, conductivity together with TDS, resistivity and salinity options, dissolved oxygen and temperature. Results appear on the backlit graphic LCD in textual or graphical format and can be stored for later PC transfer. The probe holds a maximum of three field-exchangeable, colour-coded sensors that thread into place and are detected automatically. Operators may choose quick one-point calibration with HI9828-25 or conventional multi-point calibration for pH, conductivity and dissolved oxygen. Automatic temperature compensation and automatic barometric compensation for dissolved oxygen are built in. The handheld housing is IP67-rated for temporary immersion, while the probe itself meets IP68 for continuous underwater use; the Quick Connect DIN coupling keeps the link waterproof. Comprehensive GLP records and logging of up to 45 000 values round out the feature set. Supplied as a battery-powered instrument from manufacturer Hanna Instruments, this configuration pairs the meter with the 20 m cable probe for demanding field and process monitoring.
This article is part of Dissolved oxygen & multiparameter meters, in pH & electrochemistry.
Key features
- Pack size: 1 pc
- Probe model: HI7698194/20
- Cable length: 20 m
- Measured parameters: pH, ORP, conductivity, dissolved oxygen, temperature (up to 12 values)
- Protection class: IP67 (meter), IP68 (probe)
- Power supply: Battery
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Dissolved oxygen & multiparameter meters
Catalogue
Brand
Questions about Waterproof multiparameter portable meter with HI7698194/20 probe, 20 m cable
What is this article?
Waterproof multiparameter portable meter with HI7698194/20 probe, 20 m cable is the article on this page. Luminix Health distributes Hanna Instruments for laboratory use. It sits in Dissolved oxygen & multiparameter meters, inside pH & electrochemistry, in Lab instruments.
A dissolved-oxygen meter reads oxygen in a liquid, optically or with a Clark cell. A multiparameter meter adds pH, conductivity or both on one instrument. The sensor cap or the membrane is the consumable. A reading in air and a reading in water are different calibrations.
A pH meter is a voltmeter on a glass electrode. The voltage tracks hydrogen-ion activity, and the electrode is converted to pH only after it is adjusted with buffers of known value. Conductivity measures how well a solution carries a current, which for dilute salts tracks concentration. Dissolved oxygen and titration are further electrodes on the same idea: a sensor, a standard, and a reading that is only as fresh as the calibration. Buffer values and chemical identity sit on PubChem. Accreditation of the calibration laboratory is the field of BELAC and EURAMET.
