Description

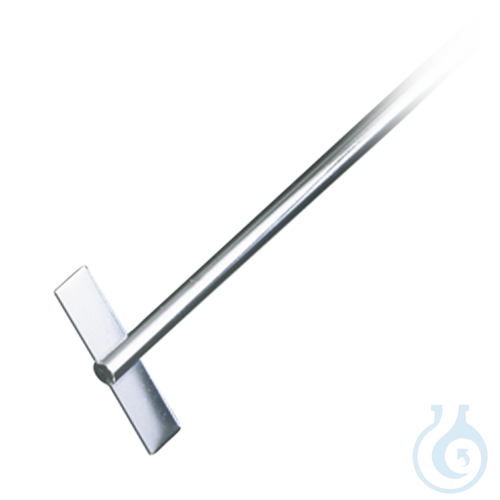

BR 11 blade stirrer (V4A) is a stainless-steel impeller suited to solutions, emulsions and suspensions in laboratory vessels. Blade dimensions make it ideal for containers with 100 mm diameter, 5 mm bottom clearance, 100 mm filling height and approximately 800 ml working volume. The stirrer has an overall length of 400 mm. Its stirring shaft measures 8 mm in diameter, and the blade itself is 12 mm long by 50 mm wide. These proportions support efficient mixing and homogenisation for a range of fluid viscosities typical in chemical, pharmaceutical and research applications. Constructed entirely from stainless steel, the BR 11 provides corrosion resistance and mechanical durability for repeated laboratory use. Supplied as one piece from manufacturer Heidolph, the impeller couples readily with standard overhead stirrer motors. Net weight is 0,160 kg. It constitutes a practical choice for routine blending, suspension and emulsion tasks that require a compact blade geometry of defined size.
This article is part of Stirring shafts, propellers & impellers, in Stirring, shaking & mixing.
Key features
- Pack size: 1 pc
- Product type: BR 11
- Overall length: 400 mm
- Shaft diameter: 8 mm
- Blade length: 12 mm
- EAN: 4255661402502
- Technical Information Sheet:
