Description

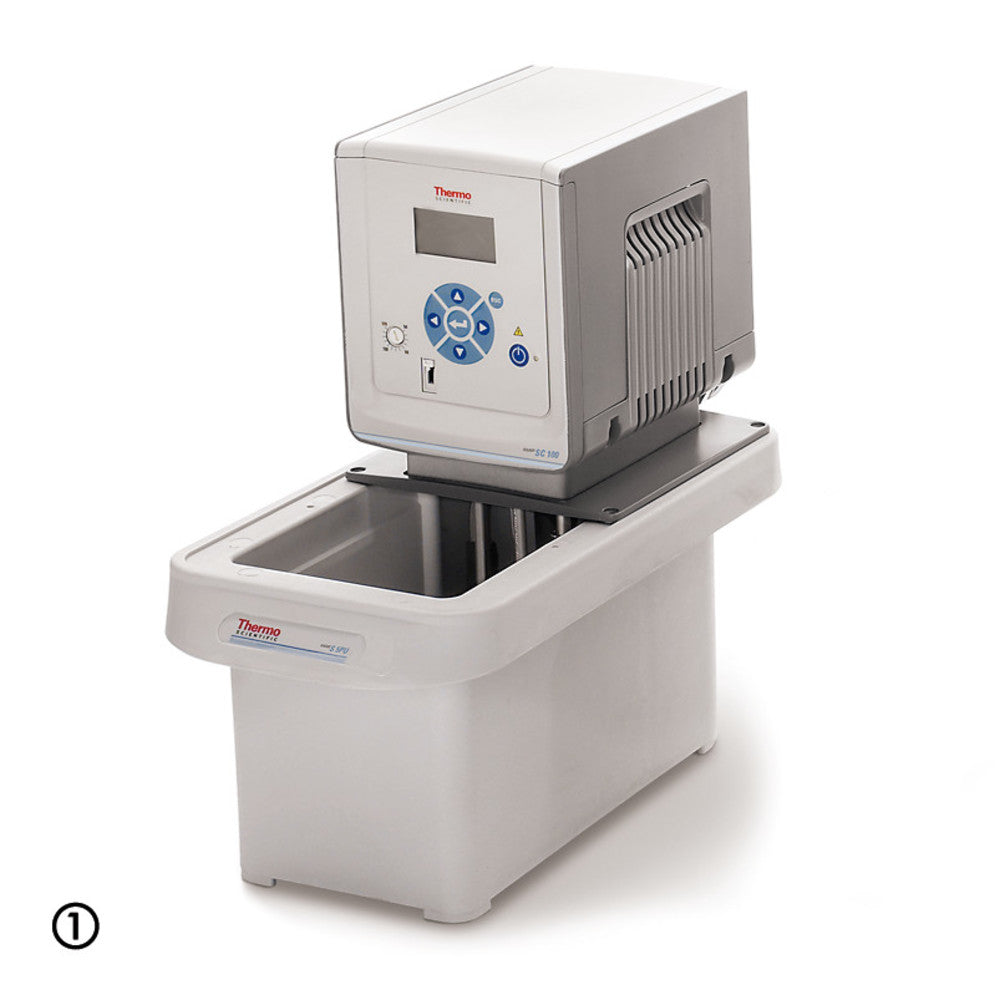

Circulating thermostat w. integral bath, SC 100-S14P, +13 - +100°C, vol. 8-14 l
- With pump circulation set for temperature control of external sealed applications
- Simultaneous display of setpoint and actual temperature
- Display resolution 0.1 or 0.01 °C can be selected
- Polyphenylene oxide (PPO) bath tanks
- Thermostat heads can be turned in 90° increments on the bath if required (except SC 100-S5P)
- Pumps with 2-stage turbulence reduction system
- Hose connectors for tubes with 8 and 12 mm inside Ø
- Integrated handles
- I (NFL) = non-flammable liquids
Delivery without bath cover or cooling coil. If required, please order separately.
Technical Information
| Type | SC 100-S14P |
| Operating temperature | From +13 °C above room temperature to +100 °C |
| Temperature constancy | ±0,02 K |
| Display resolution | 0,1/0,01 °C |
| Heating output | 2000 W |
| Max. pump pressure | 300 mbar |
| Max. flow | 17 l/min |
| Bath volume | 8-14 l |
| Bath opening | 300 x 190 mm |
| Inner depth | 160 mm |
| Outer width | 358 mm |
| Outer depth | 452 mm |
| Outer height | 361 mm |
| Safety class | I (NFL) |
