Description

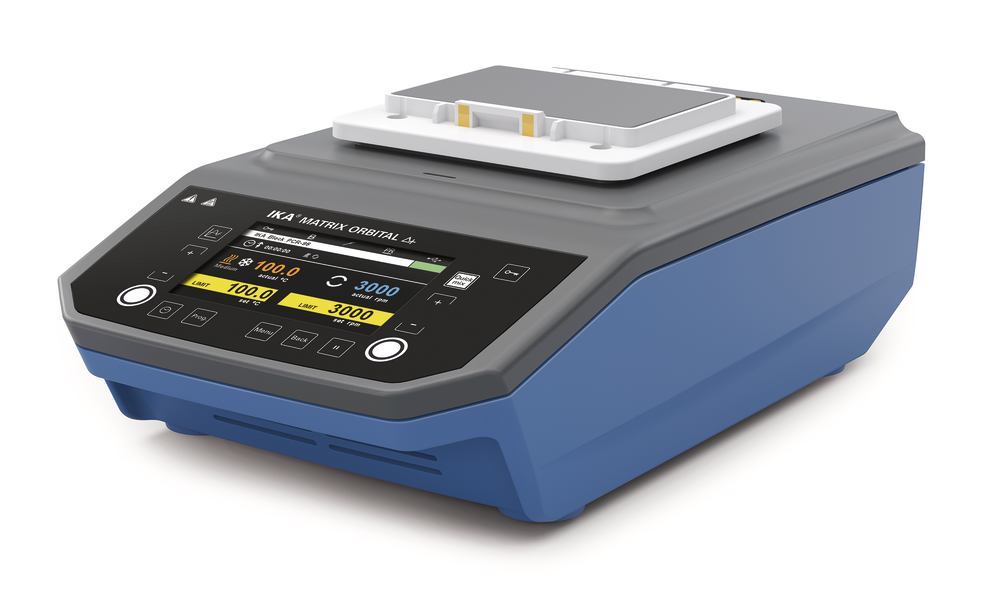

Cooling and heating thermoshaker, Matrix Orbital Delta Plus, 15 °C below room temperature up to 100 °C, not including interchangeable blocks
For cooling, heating and mixing in circular motions.
Features:
- TFT display with convenient menu structure
- Snap-lock mechanism for changing attachments and automatic attachment detection
- For mixing liquids at up to 3000 rpm and with a 3 mm shaking stroke (depending on the attachment used)
- It has two different speed modes for controlling temperature according to the sample
- Automatically performs mixing and heating tasks with five programmable ramps with five increments each consisting of temperature speed and time
- Die-cast aluminium housing ensures stability
- USB and RS 232 interfaces
- Shaking frequency can be adjusted in 10° increments
Delivery without interchangeable block (please order separately).
Technical Information
| Type | Matrix Orbital Delta Plus |
| Version | Heating and cooling |
| Max. exchange blocks | 1 |
| Operating temperature | 15 °C below room temperature up to 100 °C |
| Temperature adjustment range | +1 to +100 °C |
| Accuracy | 0,5 K |
| Resolution | 1 °C |
| Average heating rate | 6 °C/min |
| Medium cooling rate | 0.8 °C/min |
| Timer | 1 s to 100 h, (in 1 min increments) or continuous operation |
| Shaking frequency | 300-3000 rpm |
| Shaking amplitude (stroke) | 3 mm |
| W x D x H | 216 x 351 x 127 mm |
| Weight | 10 kg |
| Mains connection | 100-240 V, 50/60 Hz |
