Description
GC-Capillary column ROTI®Cap-1 non polar, L 10 m, inner Ø 0.25 mm, thick 0.50 µm
Fused Silica coated with polyimide
Further attractive products to complete your chromatography laboratory can be found on our Chromatographypage!

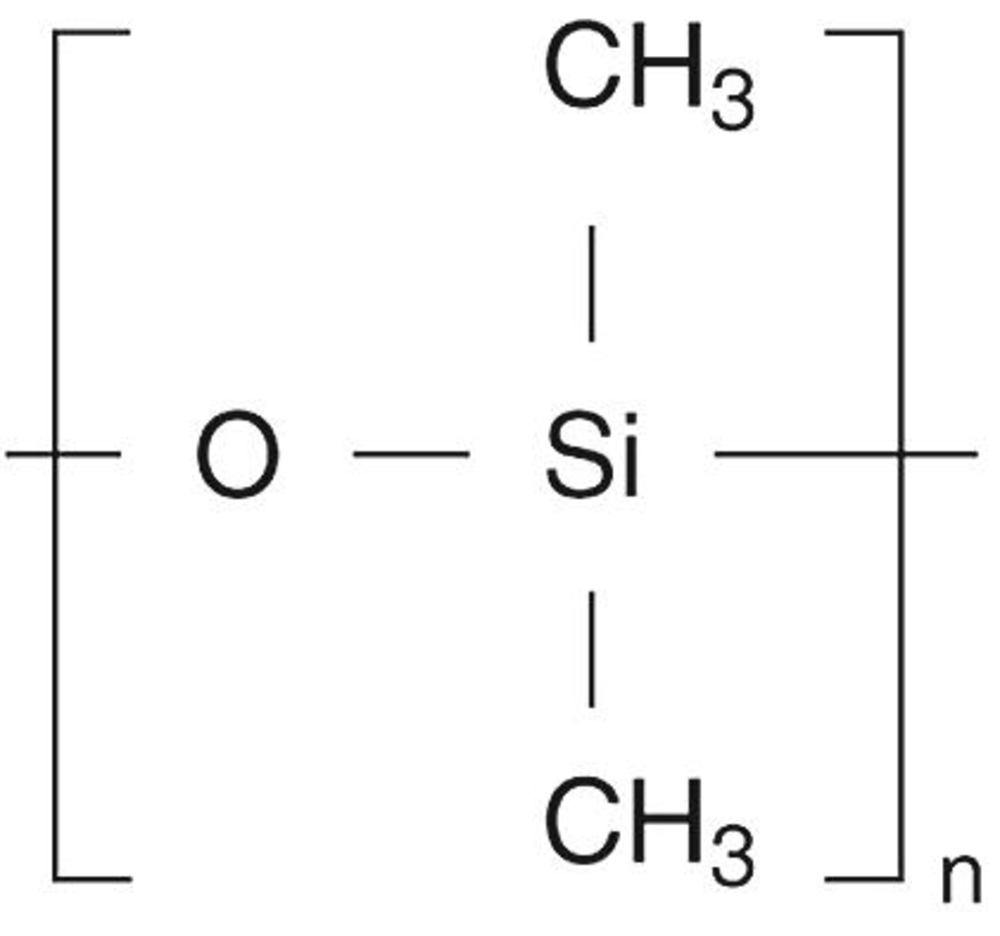

100 % Dimethylpolysiloxane
- Non-polar
- Solvent rinsing applicable
- Working temperature limits: for columns with 0.10-0.32 mm inner diameter and films <3 µm: 340 °C for isothermal operation 360 °C for short isotherms in a temperatur programme for columns with 0,53 mm inner diameter and films <3 µm: 320 °C for isothermal operation 340 °C for short isotherms in a temperature programme for thick film columns with films ≥3 µm: 300 °C for isothermal operation 320 °C for short isotherms in a temperature programme
- Application areas: Excellent column for routine applications.
- OV-1, DB-1, SE-30, HP-1, SPB®-1, CP-SIL 5 CB, Rtx®-1, 007-1, BP1, MDN-1, AT™-1, ZB-1, OV-101
- Equivalent to USP phases G1/G2/G38
Technical Information
| Column length | 10 m |
| Ø internal | 0.25 mm |
| Film thickness | 0.5 µm |
| Phase | 1 |
| Polarity | non-polar |
| Additional info about material | Fused Silica coated with polyimide |
| Cage size | 7" (inch) |
| USP listing | G1 G2 G38 |
