Description

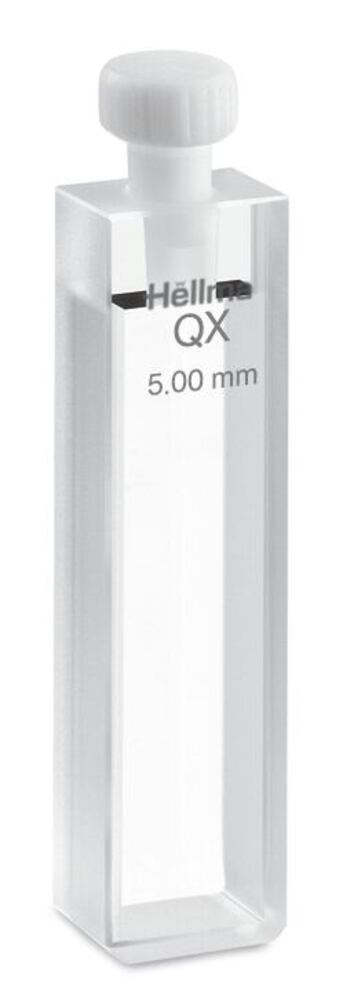

Macro cuvette type 110-QX is a precision spectroscopy cell fabricated from extended-range quartz glass for the wavelength range 200 nm to 3500 nm. The optical path length is 5 mm and the nominal fill volume is 1750 µl (0,00175 l), with a PTFE stopper for reliable sample containment in common spectrophotometers. High path-length accuracy and window parallelism support continuously reproducible measurement results across UV, visible and infrared applications. Thermally bonded construction from manufacturer Hellma replaces adhesive joints, delivering strong resistance to temperature and chemicals and helping prevent unintended liquid leakage. Selected extended-range quartz glasses provide excellent transmission greater than 83 % for exact photometric data. Chamfered edges enable safe, comfortable handling and minimise chipping risk during everyday laboratory work. The durable cells can be cleaned and reused over long periods as a sustainable alternative to single-use options. Manufacturing is carried out entirely in Germany under EN ISO 9001 and EN ISO 14001 and fulfils high optical standards; a declaration of conformity is available from the Hellma website, with further certificates on request. The quartz quality carries the registered trademark SUPRASIL®.
This article is part of Cuvettes.
Key features
- Pack size: 1 pc
- Product type: 110-QX
- Material: Extended-range quartz glass (SUPRASIL®)
- Path length: 5 mm
- Wavelength range: 200–3500 nm
- Fill volume: 0,00175 l
- Technical Information Sheet:
Recently viewed
You may also like
Questions about macro cell, 110
What is this article?
macro cell, 110 is the article on this page. Luminix Health distributes Hellma (IDL) for laboratory use. It sits in Cuvettes, in Labware.
A cuvette is an optical cell. The spectrophotometer or photometer sends a beam through a defined path length, usually 10 mm, and the absorbance is read from that path. Glass is for the visible range. Quartz or a UV-grade plastic is required below about 320 nm, because ordinary glass absorbs there. The path length and the wavelength window are the two numbers that choose the cell. The optical methods that use it sit with NIST and the BIPM. Laboratory ware is indexed under ISO laboratory apparatus.
