Description

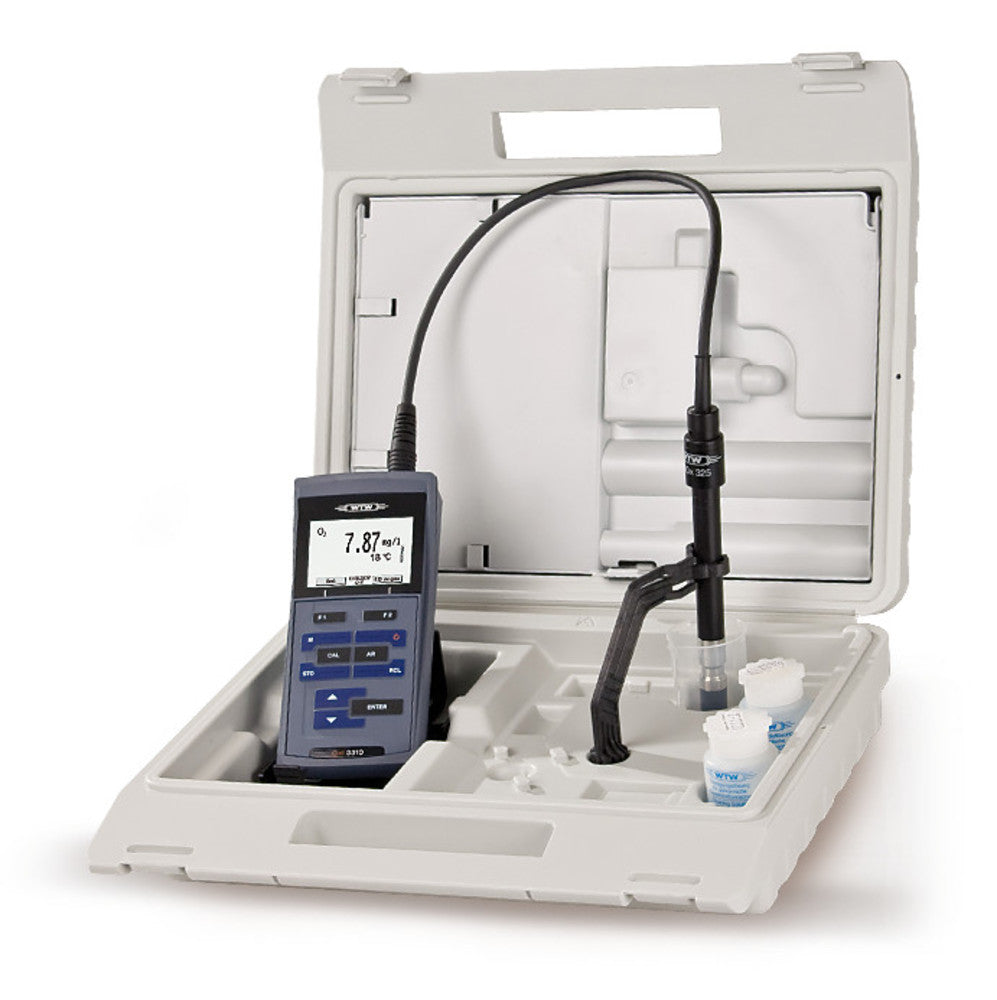

Pocket oxygen meter Oxi 3310-Set, -5 - +50°C, Mini-USB, H 180xW 80xD 55 mm, incl. oxygen sensor CellOx®325, professional case, cleaning agent and electrolyte solution , 3 replaceable membrane heads , stand and beaker , driver software for USB , USB-cable
Robust and waterproof portable meter.
- Integrated data logger
- Installed air pressure compensation sensor
- Backlit graphics display
- With calibration memory - five calibrations can be retrieved
Delivery incl. CellOx® 325 galvanic oxygen sensor with 1.5 m fixed cable, professional case with integrated measuring station, electrolyte solution, three replaceable membrane caps, stand, beaker, software, USB cable and batteries.
Technical Information
| Type | Oxi 3310 |
| Parameters | oxygen |
| O2 concentration measuring range | 0.01 to 90.9 mg/l |
| O2 saturation concentration | ±0.5 % of the measured value |
| O2 saturation measuring range | 0.1 to 600 % |
| O2 saturation accuracy | ±0.5 % of the measured value |
| O2 resolution | 0.01 mg/l (0.01 to 19.9 mg/l) 0.1 mg/l (0 to 90.9 mg/l) 0.1 % (0.1 to 199.9 %) 1 % (0 to 600 %) |
| Partial pressure measuring range | 0.1 to 1250 hPa |
| Partial pressure resolution | 0.1 hPa (0.1 to 199.9 hPa) 1 hPa (0 to 1250 hPa) |
| Partial pressure accuracy | ±0.5 % of the measured value |
| Temperature measuring range | -5 to +50 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0.1 °C |
| Data memory | 200 datasets can be entered manually5000 datasets can be entered at a scheduled time |
| Port | Mini USB |
| W x D x H | 80 x 55 x 180 mm |
| Power supply | 4x battery Mignon/AA 1.5 V |
