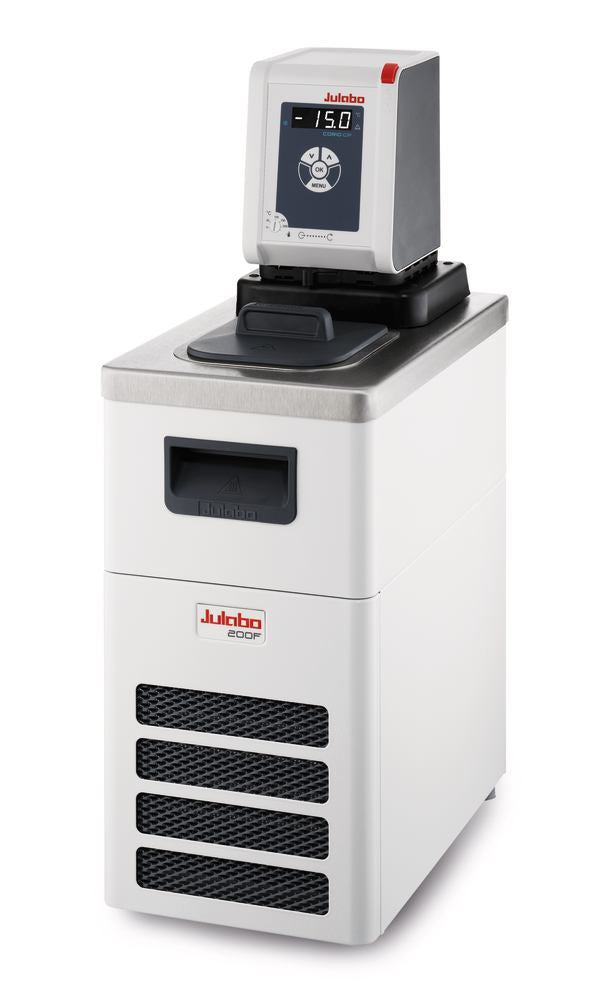

Refrig. circ. thermostat CP-200F, Oper.temp. -20 to +200 °C, Bathvol. 3-4 l, incl. stainless steel bath with lid, draining tap and hose connectors suitable for hoses with ID 8 and 12 mm.
Temperature control either in the internal bath or in a connected external application such as a photometer, refractometer, viscometer and others.
- Simple changeover between internal and external circulation
- LED temperature display
- Setting/display resolution 0.01 °C (to 99.99 °C), 0.1 °C (from 100 °C)
- Early warning system for low liquid level
- Continuously adjustable pressure pump
- With USB and RS 232 port
- With timer (range: 0 to 999 min)
- Protection against excess temperature and low liquid level for flammable liquids (FL), safety class III
Delivery incl. stainless steel bath with lid, draining tap and hose connectors suitable for hoses with ID 8 and 12 mm.
Technical Information
| Type | CP-200F |
| Operating temperature | -20 to +200 °C |
| Temperature constancy | ±0,03 K |
| Heating output | 2000 W |
| Cooling capacity | 20 °C: 200 W 10 °C: 170 W 0 °C: 150 W -10 °C: 100 W -20 °C: 20 W |
| Max. pump pressure | 700 mbar |
| Max. flow | 8-27 l/min |
| Bath volume | 3-4 l |
| Bath opening | 130 x 150 mm |
| Inner depth | 150 mm |
| Outer width | 230 mm |
| Outer depth | 390 mm |
| Outer height | 650 mm |
| Mains connection | 230 V, 50/60 Hz |
