Description

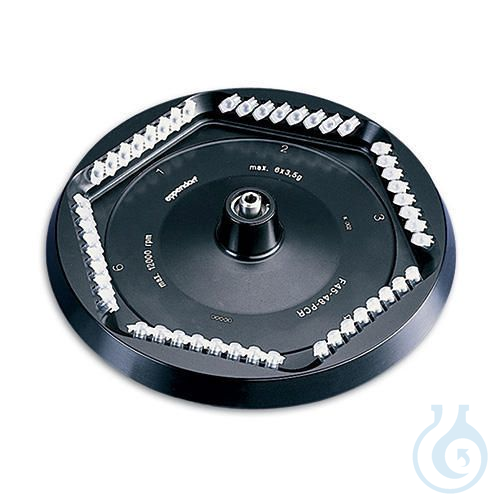

Rotor F-45-48-PCR is a fixed-angle PCR rotor for Centrifuge 5804, 5804 R, 5810 and 5810 R. It accepts up to 6 × 8-tube PCR strips, 6 × 5-tube PCR strips or 48 × 0,2 ml individual PCR tubes, covering common strip and single-tube formats used in amplification workflows. Maximum relative centrifugal force is 15.294 × g at 12,000 rpm, supporting rapid spin-downs and post-PCR processing. Handling is safe and straightforward without an additional lid, which simplifies loading and unloading at the bench. From manufacturer Eppendorf, the packed rotor is supplied as one piece with a net weight of 0,900 kg and gross weight of 1 kg; packaging volume is 0,006 m³ and origin is Germany (Saxony). Molecular biology and diagnostic laboratories can use this rotor to process full plates of PCR strips or mixed single vessels in one run, improving throughput on the 5804/5810 centrifuge family while keeping vessel orientation consistent and operation simple for daily use.
This article is part of PCR plates, tubes & strips, in Microplates, PCR & reaction tubes.
Key features
- Pack size: 1 pc
- Rotor model: F-45-48-PCR
- Capacity: 6 × 8-tube / 6 × 5-tube PCR strips or 48 × 0,2 ml tubes
- Compatible centrifuges: 5804/5804 R/5810/5810 R
- Max. RCF: 15.294 × g (12,000 rpm)
- Handling: without additional lid
- Technical Information Sheet:
