Description

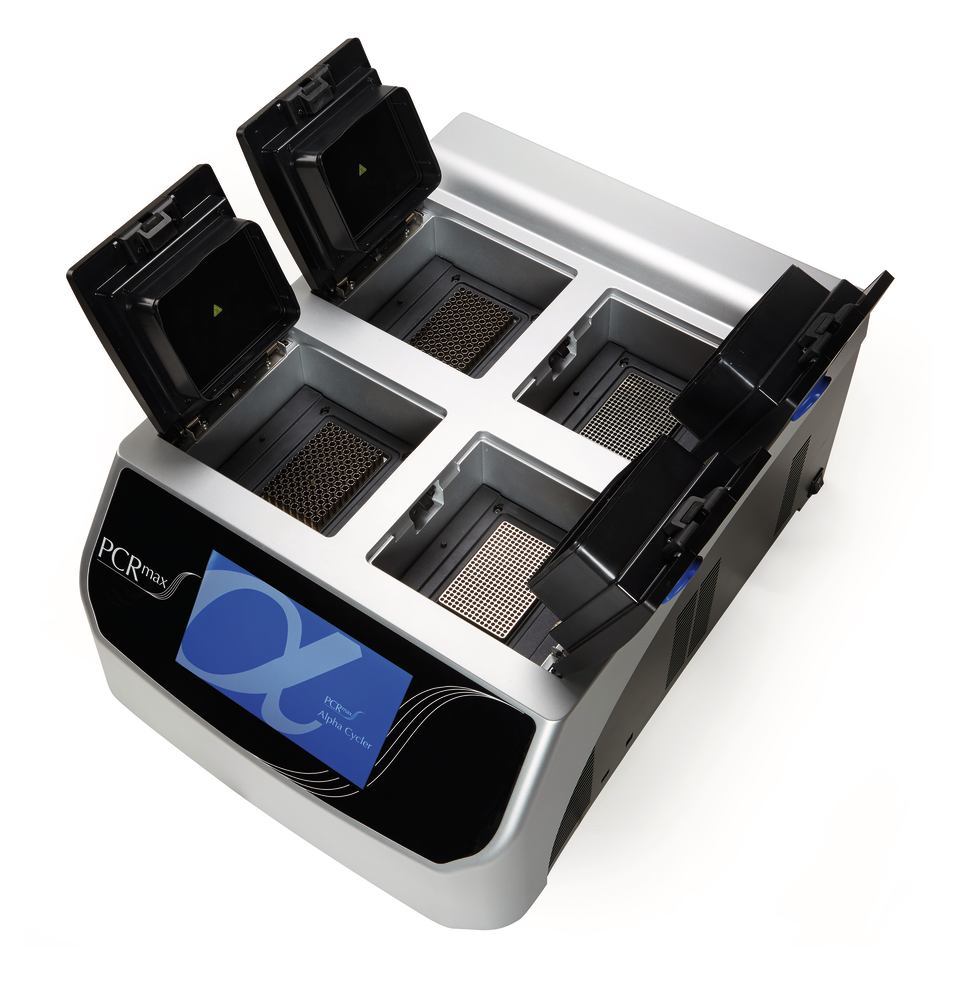

Thermal Cylcer Alpha 3 , for 4x96 well (0.2 ml)
Compact and easy-to-handle thermal cyclers for PCR
- Android controlled HD touchscreen
- Gradient function
- Fast heating and cooling rates
- High temperature homogeneity
- Automatic protocol optimisation with Program Wizard
- USB interface for secure user login
The compact PCR thermal cyclers are suitable for DNA amplification in high-throughput screening, genotyping or cloning. The thermal cyclers can be intuitively programmed with a touch screen and deliver repeatable results with every run.Features include a clear, responsive touch screen, secure and user-specific programming, an adjustable heated lid and active sample cooling for stronger and more specific amplification.A program wizard generates a protocol specific to your sequence in seconds, allowing you to quickly optimise amplification of new samples. The instrument stores up to 1000 reports for later viewing and offers an intuitive HD Android™ tablet user interface. Personal settings can be stored on a USB stick, which can then also be used to log in.
Four blocks with 96 wells each for 96 well PCR plates or 0.2 ml PCR tubes. The compact design allows the running of four independent PCR screenings in one unit. The blocks can be controlled individually.
| Sample capacity | 4 x 96 |
| Type | Alpha 3 |
| Block temperature range | 4-100 °C |
| Block uniformity at 55 °C | ±0,3 °C |
| Temperature control accuracy at 55 °C | ±0,25 °C |
| Max. heating rate | 3.4 °C/s |
| Peltier elements | 8 |
| Lid temperature (can be switched off) | 35-115 °C |
| Suitable for | PCR |
| Max. number of programmes | 1000 |
| Increment/decrement function | yes (temperature and time) |
| Gradient temperature range | 1-29 °C |
| Oligonucleotide Tm calculation | Yes |
| Display type | HD Android touchscreen |
| Auto-Restart function | yes (disengageable) |
| Port | USB port |
| Safety devices | Personal access via USB |
| L x W x H | 70 x 53.5 x 33.5 cm |
| Weight | 47 kg |
| Mains connection | 100-230 V, 50/60 Hz |
| Performance | 1600 W |
