Description

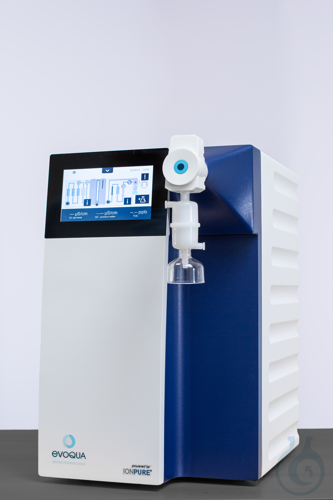

Ultra Clear TP ED 10 TWF 60 UV UF TM is a tap-water-fed ultrapure water system with electronic dispenser (ED) for precise, volume-controlled dosing of up to 2,0 l/min. The TWF configuration connects directly to the drinking-water supply and combines reverse osmosis at a recovery above 30 % with a subsequent ion-exchange module and a 60 l tank. Pure-water production rate is 10 l/h, with minimum pure-water conductivity of 0,2 µS/cm, TOC of 3 ppb and particles 0,1 µm < 1/ml. Ultrafiltration and UV irradiation support endotoxin content below 0,001 EU/ml and freedom from DNase, RNase and DNA; online TOC monitoring is included. Maximum feed-water conductivity is 1400 µS/cm. Intuitive software enables immediate dispensing, while printer and Modbus interfaces integrate data transfer into existing systems. Electrical connection is 100–240 V / 50–60 Hz at 0,225 kW; sound pressure level is max. 55 dB. Device dimensions are 340 mm width, 535 mm height and 550 mm depth; the 60 l tank measures 560 mm × 770 mm × 310 mm. Net weight is 32 kg. This compact system from manufacturer Evoqua Water Technologies is suited to laboratory production of high-purity water for analytical and life-science workflows.
This article is part of Ultrapure & pure water systems, in Water purification.
Key features
- Pack size: 1 pc(s)
- Product type: Ultra Clear TP ED
- Pure water production rate: 10 l/h
- Dispensing rate: up to 2,0 l/min
- Tank capacity: 60 l
- TOC value: 3 ppb
- Technical Information Sheet:
Recently viewed
You may also like
Questions about Ultra Clear TP ED 10 TWF 60 UV UF TM
What is this article?
Ultra Clear TP ED 10 TWF 60 UV UF TM is the article on this page. Luminix Health distributes Evoqua Water Technologies for laboratory use. It sits in Ultrapure & pure water systems, inside Water purification, in Lab instruments.
A pure-water system, often by reverse osmosis and deionisation, feeds the laboratory. An ultrapure polisher takes that water to the resistivity and organic levels HPLC or cell culture ask for. Production rate and the feed water it expects are the specification. The system is not a cooler.
Laboratory water is a reagent. Tap water carries ions, organics and microbes that become part of every result they touch. A pure-water system takes most of them out. An ultrapure system, often a polisher after a first stage, is what HPLC, cell culture and trace analysis ask for. Resistivity, total organic carbon and endotoxin are different claims. A cartridge is spent when the number drifts, not when the calendar says so. The measurement of those impurities sits with NIST and the BIPM.
