Description

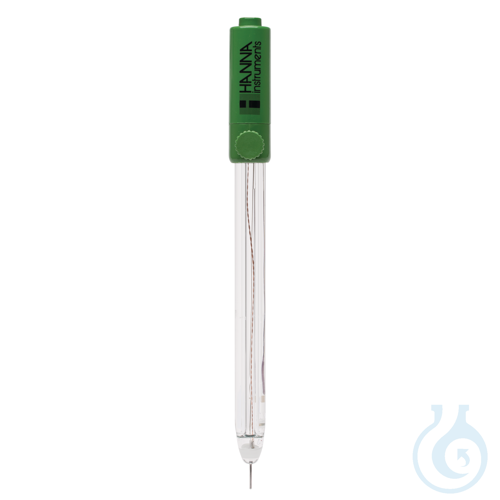

Glass electrode for redox and temperature is a refillable ORP sensor with integrated temperature measurement for general laboratory applications. Built in glass with a single ceramic diaphragm (flow rate 15–20 µL/h), single Ag/AgCl reference and 3,5 M KCl + AgCl electrolyte, it features a platinum pin tip and covers a redox range of ±2000 mV. An internal microchip stores sensor type, ID and calibration data that are automatically recalled by edge® meters upon connection via the 3,5 mm jack plug. The 1 m cable, built-in temperature sensor and amplifier support reliable operation from −5 to 100 °C at a maximum pressure of 0,1 bar. Matching pin is not included. Supplied as one piece from manufacturer Hanna Instruments, this double-function glass redox electrode pairs advanced digital identification with classic refillable chemistry for edge® laboratory systems. Net weight is approximately 0,3 kg, making it a practical choice for routine ORP and temperature work under the stated conditions.
This article is part of pH electrodes & sensors, in pH & electrochemistry.
Key features
- Pack size: 1 pc
- Sensing tip: Platinum pin
- Body material: Glass, refillable
- Connector: 3,5 mm jack
- Cable length: 1 m
- Measuring range: ±2000 mV
