Description

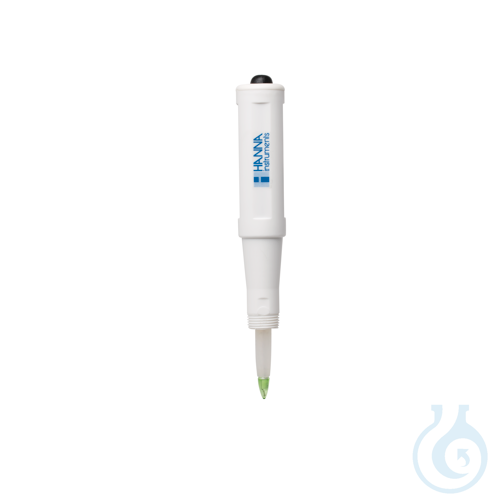

Food pH/°C electrode for meat with 1 m cable and Quick Connect DIN is a single-junction pH electrode with integrated preamplifier and temperature sensor for demanding food measurements. The body is PVDF with a low-temperature glass tip and a conical sensing geometry of 6 mm × 10 mm. An open junction and silver-free Viscolene hard-gel electrolyte sit between the internal Ag/AgCl reference cell and the sample, reducing clogging in protein-rich matrices. Combined with the conical tip and optional stainless steel blades FC098 or FC099, the design supports reliable insertion into meat and other solid foods. Measuring range is pH 0 to 12; recommended operating temperature is 0 to 50 °C at a maximum pressure of 0,1 bar. The 7-pin, 1 m cable with Quick Connect DIN mates with compatible meters such as HI98163 and HI98190 from manufacturer Hanna Instruments. Built-in amplification and temperature compensation support stable field and laboratory readings. Pack size is 1 piece for food quality control and process monitoring.
This article is part of pH electrodes & sensors, in pH & electrochemistry.
Key features
- Pack size: 1 pc
- pH range: 0 to 12
- Tip shape: Conical (6 mm × 10 mm)
- Junction / electrolyte: Open; Viscolene (Ag-free)
- Connector: Quick Connect DIN, 7-pin, 1 m cable
