Description

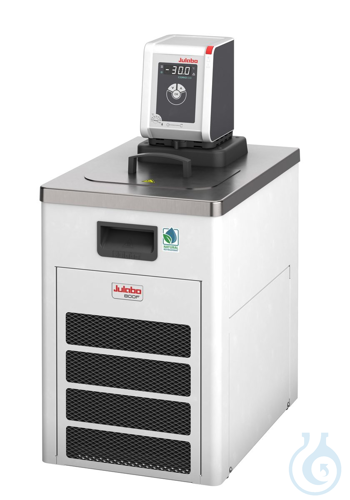

CORIO CD-800F refrigerated circulator with natural refrigerant is a robust circulating thermostat for a wide range of standard tasks and routine work in laboratory and industry. The stainless-steel bath vessel has an integrated cover and a usable bath opening of 18 × 13 / 15 cm (width × depth / bath depth). Working temperature range is −40…+150 °C with temperature stability of ±0,03 °C and display resolution of 0,01…0,1 °C. A pressure immersion pump enables internal and external applications, with simple switching between internal and external circulation and integrated M16×1 pump connections. The bright white display is highly visible, operation is particularly quiet, and a USB port is provided. Bath lid and drain cock are included; a removable ventilation grille and refrigeration machinery without side ventilation openings aid placement. A space-saving evaporator coil increases usable bath volume. Classification is Class III (FL) according to DIN 12876-1. Delivery includes two hose olives each for 8 and 12 mm internal diameter tubing. Cooling data follow DIN 12876 at 20 °C ambient. This CORIO CD unit from manufacturer Julabo combines reliability with a favourable price-performance ratio.
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Working temperature range: −40…+150 °C
- Temperature stability: ±0,03 °C
- Bath opening: 18 × 13 / 15 cm (W × D / depth)
- Pump type: Immersion pressure pump
- Classification: Class III (FL) according to DIN 12876-1
Récemment consulté
Vous aimerez peut-être aussi
Questions about CORIO CD-800F Refrigerated/heating circulator with natural refrigerant
What is this article?
CORIO CD-800F Refrigerated/heating circulator with natural refrigerant is the article on this page. Luminix Health distributes Julabo for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Instruments de laboratoire.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
