Description

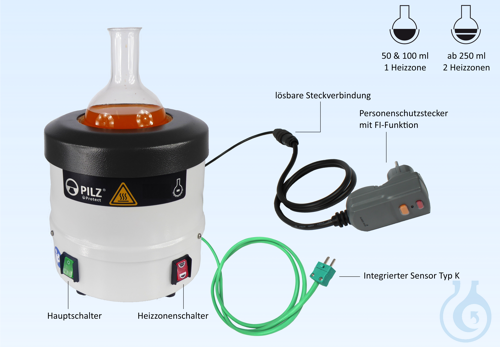

Heating mantle PILZ® -Protect-Line- LP2TC with integrated type K temperature sensor is designed for 500 ml round-bottom flasks of 105 mm diameter. Rated at 200 W and 230 VAC, it permits a maximum operating temperature of 450 °C. The hand-crocheted glass-silk heating body is built to protection class I and sits in a powder-coated metal housing with high chemical resistance. A two-part, liquid-tight upper section carries permanent warning notices and volume identification; all controls are safety switches that help prevent unintended operation. Equipment includes a main on/off switch, a heating-zone selector with integrated “Heating” status lamp for zone 1 or zones 1+2, a detachable plug connection (0,50 m cable) and a personnel-protection plug with residual-current function plus Schuko type E/F cable (1,00 m). Net weight is 2,4 kg, with housing width and height of 205 mm. This PILZ® Protect-Line mantle from manufacturer Winkler provides two selectable heating zones for controlled laboratory heating of round flasks.
This article is part of Heating mantles, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Product type: LP2TC -Protect-Line-
- Rated power: 200 W
- Flask volume: 500 ml
- Max. operating temperature: 450 °C
- Heating zones: 2
- Technical Information Sheet:
Récemment consulté
Vous aimerez peut-être aussi
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about Heating mantle metal-cased PILZ® -Protect-Line- LP2TC with sensor 500ml
What is this article?
Heating mantle metal-cased PILZ® -Protect-Line- LP2TC with sensor 500ml is the article on this page. Luminix Health distributes Winkler for laboratory use. It sits in Heating mantles, inside Heating, drying & cooling, in Instruments de laboratoire.
A heating mantle cups a round-bottom flask so the heat meets the glass without a bare flame. The flask volume the mantle was knitted for is the specification. A 1 L mantle under a 250 mL flask heats the air, not the liquid.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
