Description

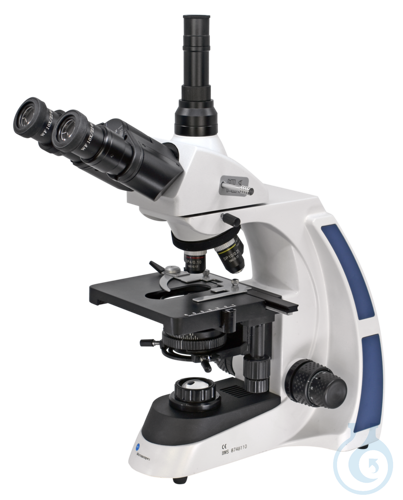

HPM D2T is a trinocular light microscope for laboratory and educational use, equipped with a 30° inclined viewing head that rotates through 360°. Wide-field WFP 10x/20 mm eyepieces with foldable eyecups support comfortable observation. High-resolution Semiplan objectives at 4x, 10x, 40x, 60x or 100x provide magnifications of 40x, 100x, 400x, 600x or 1000x; the 40x, 60x and 100x objectives feature spring-loaded specimen protection. The 140 x 155 mm stage incorporates an integrated coaxial mechanical stage with ergonomically arranged controls. A centerable Abbe condenser with numerical aperture 1,25, iris diaphragm and filter holder is height-adjustable for precise illumination control. New-generation 3 W LED lighting with Köhler iris diaphragm offers continuously variable intensity via potentiometer, comparable to a 30 W halogen lamp, and an approximate lifetime of 50 000 hours. This configuration from manufacturer Windaus is supplied with a dust cover, power cable and operating instructions. Further accessories are available on request.
This article is part of Microscope objectives, eyepieces & optics, in Microscopy & histology.
Key features
- Pack size: 1 pc
- Viewing head: Trinocular, 30° inclined, 360° rotatable
- Eyepieces: WFP 10x/20 mm with foldable eyecups
- Objectives: Semiplan high-resolution 4x, 10x, 40x, 60x or 100x
- Stage: 140 x 155 mm coaxial mechanical stage
- Condenser: Abbe, centerable, NA 1,25
- Technical Information Sheet:
Récemment consulté
Vous aimerez peut-être aussi
Browse related categories
Category
Sub-category
Microscope objectives, eyepieces & optics
Catalogue
Brand
Questions about HPM D2T
What is this article?
HPM D2T is the article on this page. Luminix Health distributes Windaus for laboratory use. It sits in Microscope objectives, eyepieces & optics, inside Microscopy & histology, in Instruments de laboratoire.
An objective makes the resolution. Magnification and numerical aperture are the two numbers, and the tube length or the infinity correction has to match the microscope. An eyepiece mostly enlarges the image the objective already resolved. A mismatched objective does not become sharper by zooming.
A light microscope forms an image with glass lenses and transmitted or reflected light. A stereo microscope is the lower-magnification instrument for dissecting and for looking at a surface. Fluorescence needs a light source and filters matched to the dye. Histology is the preparation that makes a tissue readable: fixation, a cassette, a section, a stain. The objective's magnification and numerical aperture decide the resolution. The slide and the cover glass decide whether the section sits in the focal plane. Stains and dyes as substances are identified on PubChem. Papers on the methods are on PubMed.
Which category should I open next?
The category is Microscopy & histology. The sub-category is Microscope objectives, eyepieces & optics. The catalogue is Instruments de laboratoire.
Shelves beside this one are Microscope slides & cover glasses, Histology cassettes & moulds, Counting chambers & haemocytometers, Stereo microscopes, Light & fluorescence microscopes, Histology reagents & consumables, Microscopy accessories, Cold light sources & lighting and Digital & USB microscopes.
What should I check before I order?
When this page shows a safety data sheet, use that manufacturer file. Hazard text does not belong in the sales description. For a pack size, a grade or a certificate that is not on the page, send a quote request or contact the team.
