Description
General Specifications:
Probes: Resistance thermometers Pt100
Measuring input: 2 input channels
Galvanic isolation: Semiconductor relais (50 V)
Measuring range: -200 °C to +400 °C
Self calibration: Zero point, measuring current
Accuracy: 0.01 % of value, ± 3 digits
Temperature drift: 0.003 %/°C
AD converter: Delta-Sigma 24 bit, 2.5 M/s
Internel RAM memory: 99 measured values, memory stick for over 25000 measured values optional
Resolution: 0.001 °C
Further features:
Measuring functions: measuring value, zero-setting, max.-/min. value documentation, 2-step adjustment,
scaling (optional: multi-point calibration for temperature values)
Function menu: min/max values, average value of time, individual values or measuring points
2 output channels, 3 mignon alkaline batteries, input for main adapter
dimensions 127 x 83 x 42 mm, weight ca. 290 g
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand

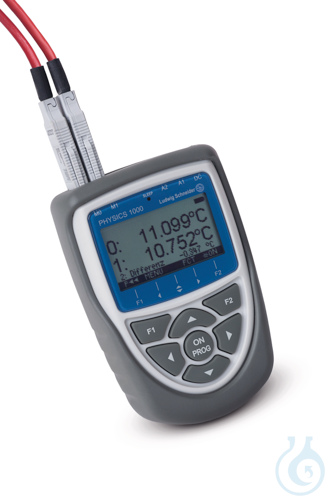

Questions about Measuring device PHYSICS 1000 - R1 (P314) with data logger, 2 input channels
What is this article?
Measuring device PHYSICS 1000 - R1 (P314) with data logger, 2 input channels is the article on this page. Luminix Health distributes Schneider for laboratory use. It sits in Data loggers, inside Temperature measurement, in Instruments de précision.
A data logger stores a temperature, a humidity or another signal over time, so a shipment or a room has a record rather than a spot reading. The interval, the memory and the sensor range are the specification. A logger that is full has stopped being a record.
A thermometer reports a temperature. A liquid-in-glass thermometer is a calibrated column. A digital thermometer is a sensor and a display, and the sensor, not the display, is what is calibrated. An infrared thermometer reads a surface and depends on emissivity. A data logger stores the reading over time. Without a stated uncertainty and a calibration point, the number is only an indication. The scale is maintained by the BIPM and compared by EURAMET. Accreditation is BELAC.
