Description

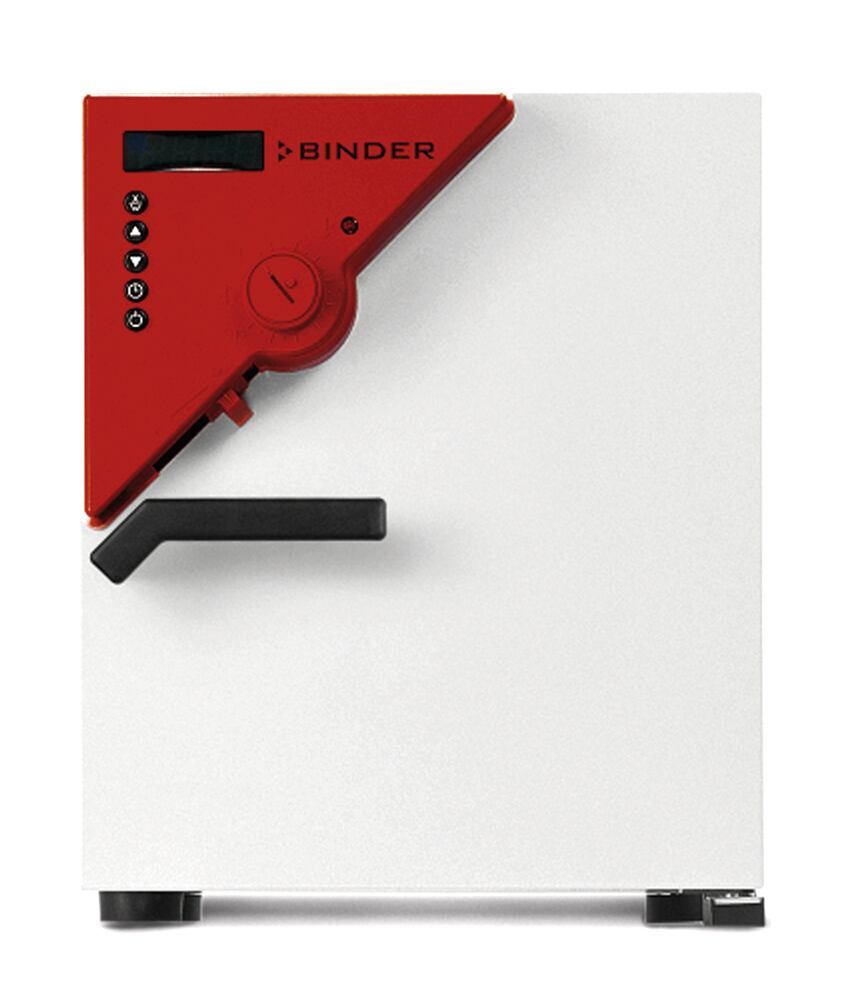

Drying and heating oven ED 23-230V is a natural-convection laboratory oven for routine drying and sterilisation tasks up to high process temperatures. With a nominal volume of 20 l, it operates from +5 °C above ambient temperature to +300 °C, enabling efficient thermal processing of samples and materials. APT.line™ preheating chamber technology and natural convection promote rapid, uniform drying without forced-air circulation. An adjustable exhaust air flap and a controller with time functions support reproducible workflows, while two chrome-plated racks provide practical loading flexibility. A temperature selector limiter class 2 (DIN 12880) with optical alarm contributes to safe high-temperature operation. This ED-series drying oven from manufacturer Binder is intended for everyday laboratory drying and heat-treatment applications where even natural-convection performance is required. Scientific specifications confirm temperature as the controllable parameter, program memory, timer function, Ethernet interface, absence of forced-air tempering, net weight 28 kg and gross weight 30 kg for the 230 V configuration.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 20 l
- Temperature range: +5 °C above ambient to +300 °C
- Convection: Natural convection
- Technology: APT.line™ preheating chamber
- Safety limiter: Class 2 (DIN 12880) with optical alarm
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 222 × 300 × 330 mm (W × D × H)
- Exterior dimensions: 435 × 520 × 495 mm (W × D × H)
- Weight, empty: 27 kg
- Voltage: 230 V, 50/60 Hz
- Nominal power: 0.8 kW
- Temperature uniformity at 150 °C: ±2.8 K
- Temperature fluctuation at 150 °C: ±0.5 K
- Heating-up time to 150 °C: 28 min
- Recovery time after a 30 s door opening at 150 °C: 5 min
- Air change rate at 150 °C: 13 x/h
- Shelves, standard / maximum: 2/4
- Load per rack: 12 kg
- Permitted load: 25 kg
- Energy consumption at 150 °C: 148 Wh/h
- Wall clearance, side: 50 mm
- Wall clearance, back: 100 mm
- Technical Information Sheet:
- Data Sheet:
Recently viewed
You may also like
Questions about Drying and heating chambers ED 23-230V
What is this article?
Drying and heating chambers ED 23-230V is the article on this page. Luminix Health distributes Binder for laboratory use. It sits in Drying ovens & climate chambers, inside Heating, drying & cooling, in Lab instruments.
A drying oven holds a temperature above ambient to drive off water or to condition a sample. A climate chamber also holds humidity. Uniformity across the chamber, not only the set point, decides whether two samples on different shelves saw the same conditions.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
