Description

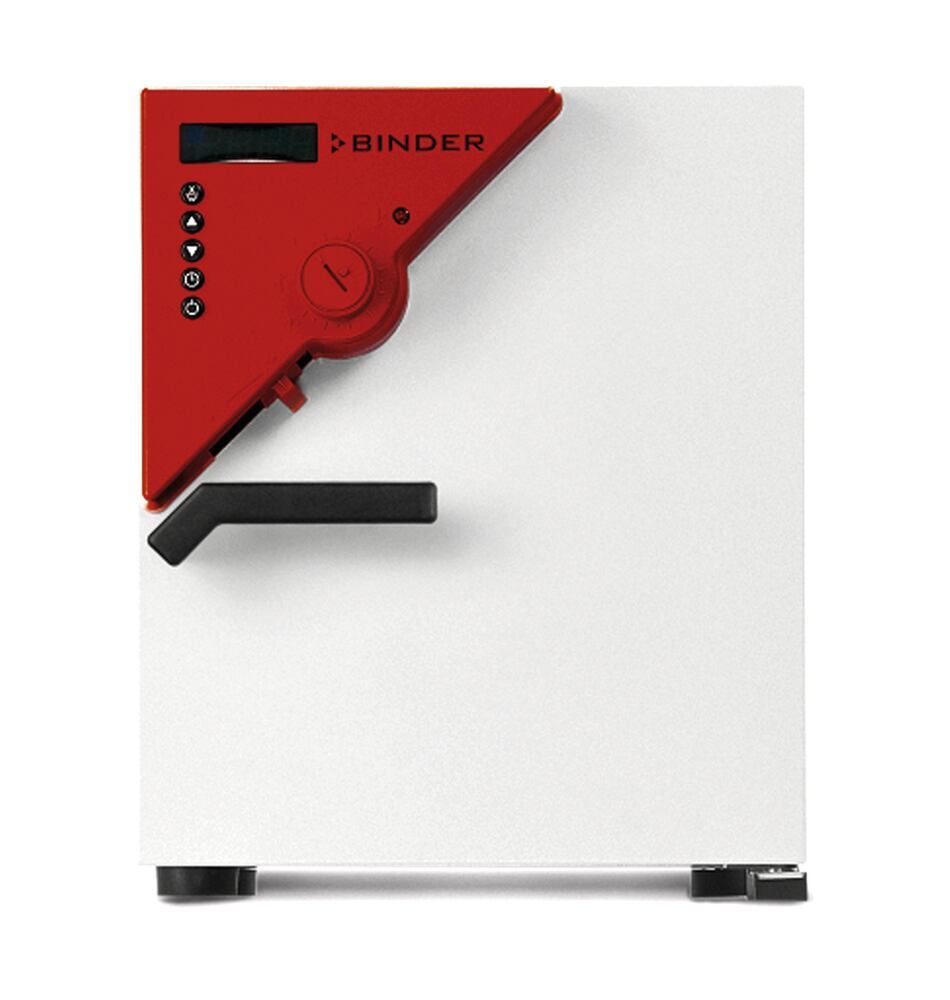

Standard incubator BD 23-230V is a compact natural-convection incubator for gentle, long-term stable incubation work. Its nominal volume of 20 l and temperature range from +5 °C above ambient temperature to +100 °C make it suitable for incubating organisms and conditioning heat-sensitive media in space-limited laboratories. APT.line™ preheating chamber technology supports uniform thermal conditions, complemented by free convection and an adjustable exhaust air flap. The controller offers time functions, while an inner door of safety glass (ESG) and chrome-plated racks facilitate observation and loading. The unit is stackable, aiding efficient bench or shelf arrangements. A temperature selector monitor class 3.1 (DIN 12880) with optical temperature alarm enhances process safety, and computer connectivity is provided for laboratory integration. This BD-series incubator from manufacturer Binder is built for continuous routine use. The 230 V model uses a Euro plug (type C). Scientific specifications list programmable temperature control, program memory, Ethernet interface capability, net weight 29 kg and gross weight 31 kg.
This article is part of Muffle & tube furnaces, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 20 l
- Temperature range: +5 °C above ambient to +100 °C
- Convection: Natural (free convection)
- Technology: APT.line™ preheating chamber
- Safety monitor: Class 3.1 (DIN 12880) with optical alarm
- Manufacturer: Binder
- UNSPSC: 41104401
- Interior dimensions: 222 × 277 × 330 mm (W × D × H)
- Exterior dimensions: 435 × 520 × 495 mm (W × D × H)
- Weight, empty: 27 kg
- Voltage: 230 V, 50/60 Hz
- Nominal power: 0.2 kW
- Temperature uniformity at 37 °C: ±0.5 K
- Temperature fluctuation at 37 °C: ±0.2 K
- Heating-up time to 37 °C: 59 min
- Recovery time after a 30 s door opening at 37 °C: 20 min
- Shelves, standard / maximum: 2/4
- Load per rack: 12 kg
- Permitted load: 25 kg
- Energy consumption at 37 °C: 11 Wh/h
- Wall clearance, side: 50 mm
- Wall clearance, back: 100 mm
- Technical Information Sheet:
- Data Sheet:
