Description

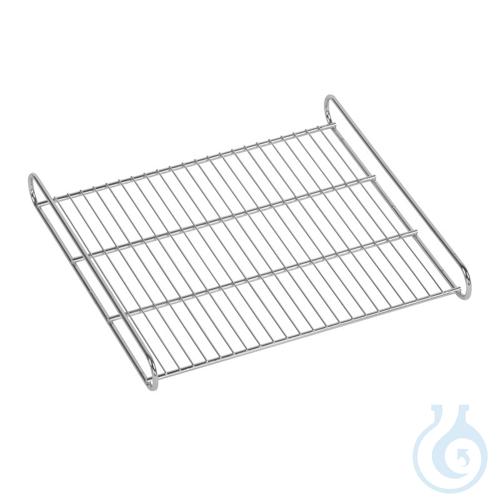

Standard incubator BD 23UL-120V is a natural-convection laboratory incubator built for long-term stable continuous use. It covers a temperature range from +5 °C above ambient temperature to +100 °C and offers a nominal volume of 20 l, making it suitable for gentle incubation of organisms and for conditioning heat-sensitive media. APT.line™ preheating chamber technology supports homogeneous thermal conditions, while free convection and an adjustable exhaust air flap allow practical airflow control. The unit includes a controller with time functions, an inner door of safety glass (ESG), and two chrome-plated racks. It is stackable and equipped with a class 3.1 temperature selector monitor according to DIN 12880 with optical temperature alarm, plus an RS 422 computer interface. Controllable parameter is temperature, with program memory and programmability available. Designed as a BINDER BD series incubator from manufacturer Binder, this single-piece unit with United States type A/B mains plug is intended for routine laboratory incubation workflows that require reliable, gentle thermal treatment without forced air.
This article is part of Muffle & tube furnaces, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 20 l
- Temperature range: +5 °C above ambient to +100 °C
- Max operating temperature: 100 °C
- Convection: Natural (free convection)
- Safety monitor: Class 3.1 (DIN 12880) with optical alarm
- Manufacturer: Binder
- UNSPSC: 41104401
- Interior dimensions: 222 × 277 × 330 mm (W × D × H)
- Exterior dimensions: 435 × 520 × 495 mm (W × D × H)
- Weight, empty: 27 kg
- Voltage: 120 V, 60 Hz
- Nominal power: 0.2 kW
- Temperature uniformity at 37 °C: ±0.5 K
- Temperature fluctuation at 37 °C: ±0.2 K
- Heating-up time to 37 °C: 59 min
- Recovery time after a 30 s door opening at 37 °C: 20 min
- Shelves, standard / maximum: 2/4
- Load per rack: 12 kg
- Permitted load: 25 kg
- Energy consumption at 37 °C: 11 Wh/h
- Wall clearance, side: 50 mm
- Wall clearance, back: 100 mm
- Technical Information Sheet:
- Data Sheet:
