Description

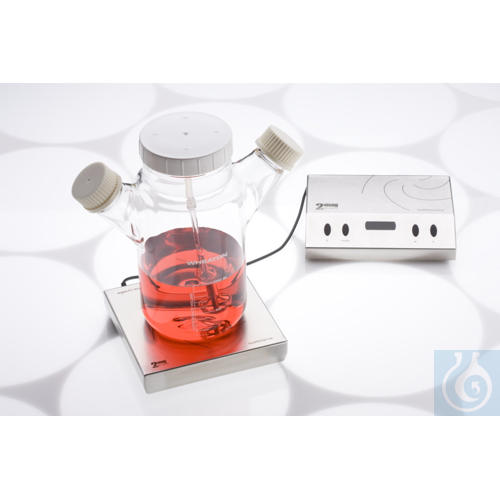

bioMIXdrive 1 is a single-point magnetic stirring system designed for gentle mixing of cell suspensions and culture broths under demanding continuous-duty conditions, including use in CO2 incubators. The maintenance-free 2mag stepper-motor drive delivers extremely slow, 100 % jerk-free agitation across an extended speed range of 5 to 250 rpm, remaining smooth even at the lowest settings and supporting culture flasks with suspended, rotating or pendulum stirrer bars. Suitable for volumes from 5 to 5,000 ml and for viscous culture media, the unit provides up to 5 W stirring power per position on a generous footprint. A fully potted, hermetically sealed stainless-steel housing with PUR sealing meets IP68, is water-, dust- and germ-tight, easy to clean and submersible in water baths for heat-free long-term operation. Operating conditions cover −10 to +50 °C at 100 % humidity or +50 °C when immersed; dimensions are 180 × 180 × 38 mm with a shipping weight of about 2,5 kg. Developed and made in Germany by 2mag, the drive requires the bioMIXcontrol unit, ordered separately. Three-year warranty covers material and manufacturing defects.
This article is part of Magnetic stirrers, in Stirring, shaking & mixing.
Key features
- Pack size: 1 pc
- Storage temperature: -40-+70 °C
- Stirring points: 1
- Speed range: 5–250 rpm
- Stirring volume: 5–5,000 ml
- Protection class: IP68
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about 2mag - bioMIXdrive 1 Stirring system for cell culture 1 stirring point
What is this article?
2mag - bioMIXdrive 1 Stirring system for cell culture 1 stirring point is the article on this page. Luminix Health distributes 2mag for laboratory use. It sits in Magnetic stirrers, inside Stirring, shaking & mixing, in Lab instruments.
A magnetic stirrer is the motor and the plate under the flask. Many also heat. The stirring capacity is the litres of a water-like liquid it can turn, and a viscous liquid defeats a rating that was measured on water.
Stirring keeps a mixture uniform or helps a solid dissolve. A magnetic stirrer spins a bar inside a closed vessel. An overhead stirrer drives a shaft when the liquid is viscous or the volume is large. A vortex mixer agitates a tube. A shaker moves a whole rack or a plate. The shape of the impeller and the speed decide whether the liquid turns over or merely spins. The vessels being stirred are indexed under ISO laboratory glassware.
