Description

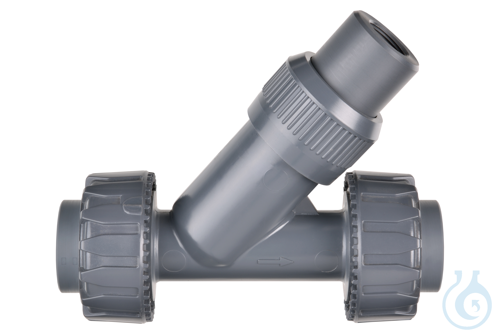

AD 92/20-RV is an angled-seat flow-through fitting in PVC for DN 20 process and laboratory lines, equipped with one mounting position PG 13,5 for sensor installation. The assembly uses a pipe union with solvent-weld sockets DN 20, allowing direct integration into PVC piping without additional adapters. Its angled-seat geometry keeps the sensor in reliable contact with the flowing medium while preserving practical flow behaviour in continuous monitoring setups. With a gross weight of 0,40 kg, the compact unit suits water treatment, chemical process control and laboratory flow systems where aqueous media are handled. The PVC body provides a durable, corrosion-resistant housing for standard PG 13,5 process sensors such as those used for pH or conductivity measurement. Offered as a single piece from manufacturer Meinsberg - a Xylem brand, this fitting is intended for permanent installation in DN 20 solvent-welded PVC circuits that require one dedicated sensor port. It supports routine inline measurement tasks in industrial and laboratory environments without altering the basic pipe layout.
This article is part of Hose connectors, adapters & fittings, in Tubing, hoses & fittings.
Key features
- Pack size: 1 pc
- Material: PVC
- Nominal diameter: DN 20
- Mounting position: 1 × PG 13,5
- Connection: pipe union with solvent-weld sockets DN 20
Recently viewed
You may also like
Questions about AD 92/20-RV
What is this article?
AD 92/20-RV is the article on this page. Luminix Health distributes Meinsberg - a Xylem brand for laboratory use. It sits in Hose connectors, adapters & fittings, inside Tubing, hoses & fittings, in Labware.
A hose connector or adapter joins two lines, or steps one bore down to another. The barb diameter has to match the tube, and the thread has to match the stopcock or the bottle. Most leaks are a mismatch here, not a hole in the tube.
Tubing is how a liquid or a gas moves between two vessels without being poured. Silicone stays flexible and survives repeated autoclaving. PTFE resists almost every solvent and is stiff. PVC is the ordinary flexible line for water and for mild aqueous work. The fitting, not the tube, is what usually leaks: the barb, the thread and the stopcock have to match the tube bore. Glass and plastic apparatus around these lines is indexed under ISO laboratory ware.
Which category should I open next?
The category is Tubing, hoses & fittings. The sub-category is Hose connectors, adapters & fittings. The catalogue is Labware.
Shelves beside this one are PVC, PTFE & other tubing, Stopcocks & valves, Silicone tubing and Tubing accessories.
What should I check before I order?
When this page shows a safety data sheet, use that manufacturer file. Hazard text does not belong in the sales description. For a pack size, a grade or a certificate that is not on the page, send a quote request or contact the team.
