Description

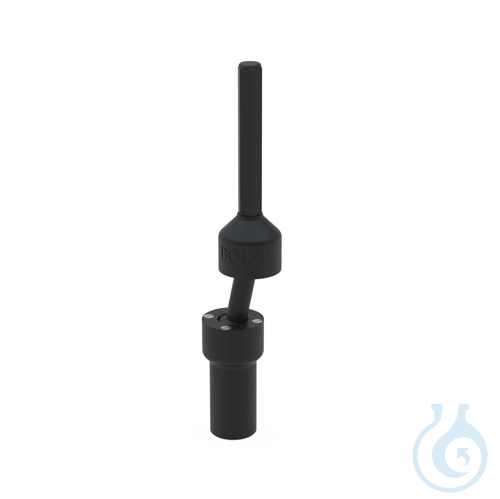

BOLA Globe Stirrer Coupling provides a mechanically solid plastic link for laboratory stirring drives that require defined torque transfer and plug-style connection. The coupling supports powerful force transmission up to 300 Ncm, is suitable for speeds up to 1200 rpm, and allows a maximum axis offset of 10 mm, helping accommodate minor misalignment between motor and shaft. At the lower end, the stirrer-shaft intake uses an internal square AF 6 (SW6) plug connection; the upper chuck intake is AF 8 (SW8). Overall length is 180 mm, giving a compact profile for standard overhead-stirrer setups. Net weight is 0,0442 kg per piece, and the product is offered as a single unit. This configuration suits shafts and chucks that rely on square drive geometry rather than round compression fittings, supporting secure engagement during continuous mixing. From manufacturer Bohlender, the globe-type design emphasises durable plastic construction and consistent mechanical performance in chemical, pharmaceutical, and general laboratory environments where controlled stirring and quick coupling are needed.
This article is part of Magnetic stirrers, in Stirring, shaking & mixing.
Key features
- Pack size: 1 pc
- Total length: 180 mm
- Shaft intake (bottom): internal square SW6 / AF 6 plug connection
- Chuck intake (top): SW8 / AF 8
- Torque transmission: up to 300 Ncm
- Max. speed: 1200 rpm
- Technical Information Sheet:
