Description

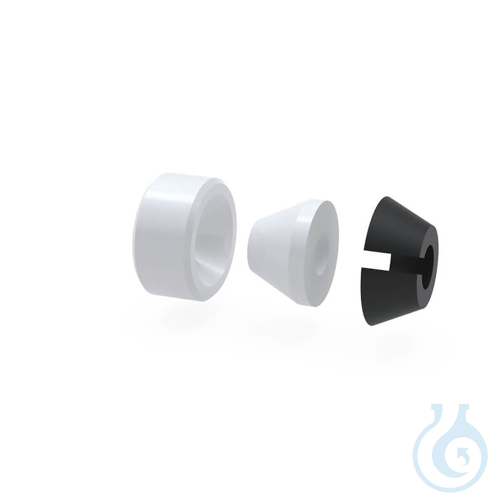

BOLA Replacement inner parts HT for GL 32 screw fittings and a hose outer diameter of 16,0 mm are laboratory connection components for renewing the sealing insert of existing HT fittings. Each set consists of a clamping ring in PPS together with a sealing wedge and a sealing plate in PTFE. For screw connections intended for hose outer diameters smaller than 3 mm, an additional O-ring made of FKM is supplied; this O-ring has no contact with the flow medium. The design ensures that the process medium comes into contact only with PTFE, giving very good chemical resistance in routine laboratory fluid handling. These replacement inner parts from manufacturer Bohlender are dimensioned for hose outer diameter 16,0 mm and GL 32 thread, matching the corresponding BOLA HT screw fittings. Offered as one piece with a net weight of 0,014 kg, the assembly combines the mechanical function of the PPS clamping ring with the chemically inert PTFE sealing elements. They are intended for maintenance and exchange of worn inner parts so that reliable sealing performance of GL 32 tubing connections can be restored without replacing the complete fitting body.
This article is part of Hose connectors, adapters & fittings, in Tubing, hoses & fittings.
Key features
- Pack size: 1 pc
- Product type: Replacement inner parts HT
- Thread: GL 32
- Hose outer diameter: 16,0 mm
- Material: PPS clamping ring, PTFE sealing wedge and plate
- Additional O-ring: FKM (hose OD < 3 mm, no medium contact)
Recently viewed
You may also like
Questions about BOLA HT Replacement Inner Parts, GL 32 Ø 16,0 mm inner parts made of PPS and PTF
What is this article?
BOLA HT Replacement Inner Parts, GL 32 Ø 16,0 mm inner parts made of PPS and PTF is the article on this page. Luminix Health distributes Bohlender for laboratory use. It sits in Hose connectors, adapters & fittings, inside Tubing, hoses & fittings, in Labware.
A hose connector or adapter joins two lines, or steps one bore down to another. The barb diameter has to match the tube, and the thread has to match the stopcock or the bottle. Most leaks are a mismatch here, not a hole in the tube.
Tubing is how a liquid or a gas moves between two vessels without being poured. Silicone stays flexible and survives repeated autoclaving. PTFE resists almost every solvent and is stiff. PVC is the ordinary flexible line for water and for mild aqueous work. The fitting, not the tube, is what usually leaks: the barb, the thread and the stopcock have to match the tube bore. Glass and plastic apparatus around these lines is indexed under ISO laboratory ware.
