Description

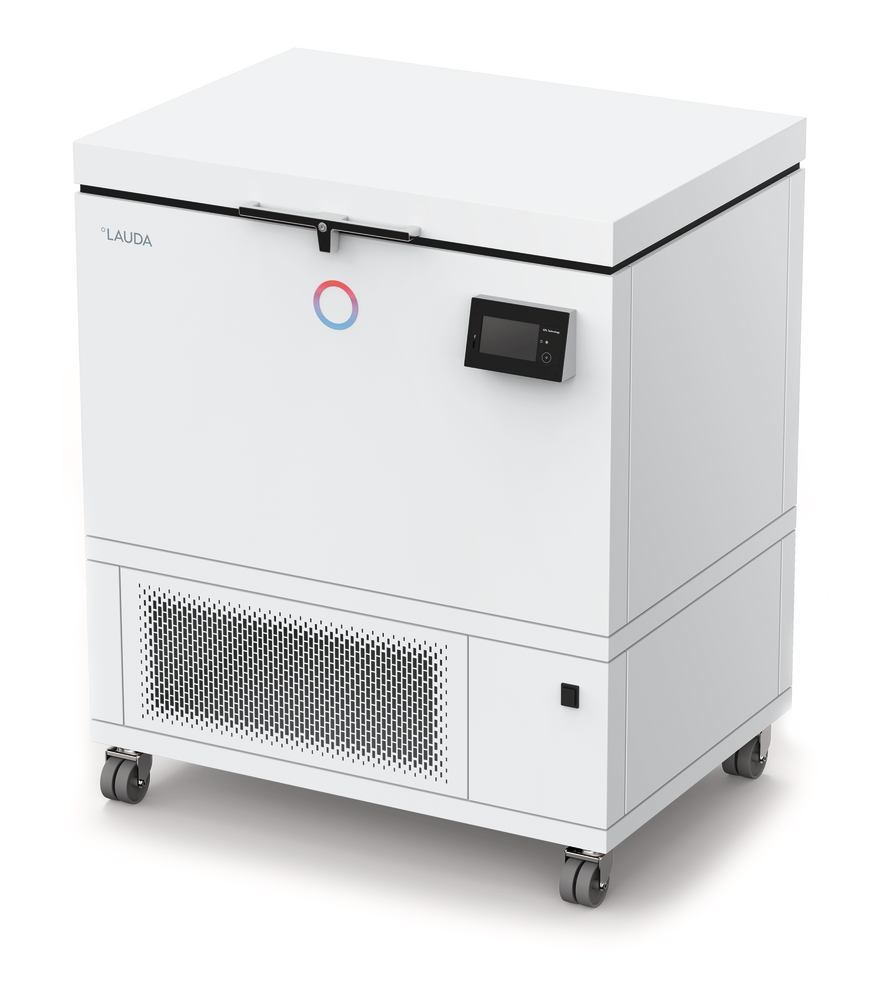

LAUDA Versafreeze VF 20085 C is an ultra-low temperature laboratory chest freezer intended for long-term storage and quality assurance of organic substances and other materials. The working temperature range is −86 to −50 °C, with temperature constancy of ±3 K and temperature homogeneity of 3 K at −86 °C. Usable volume is 205 L within interior dimensions of 790 × 520 × 500 mm; external dimensions are 960 × 790 × 1130 mm and net weight is 210 kg. A fully stainless-steel interior, densely laid cooling coil and vacuum insulation deliver high freezing speed and excellent temperature homogeneity and constancy throughout the usable space while maximising storage volume for a given footprint. The 4,3'' touchscreen control unit provides digital display and access to all safety-relevant setpoints, with adjustable over- and under-temperature alarms, password-protected user management, electronic alarm system and potential-free contact for in-house or central monitoring. Battery buffering maintains display and alarm functions during power failure. A built-in data logger records temperature and alarm data; Ethernet (IIoT-ready) and RS 485 interfaces support straightforward data transfer. Energy-saving, maintenance-free hermetic compressors run on natural refrigerants R-290 and R-170, with energy consumption of 11,2 kWh/d at −80 °C. Two 13 mm feed-throughs for control sensors and a magnetic seal system that prevents lid gaskets from freezing complete this unit from manufacturer Lauda for 230 V; 50 Hz operation.
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Working temperature range: −86 … −50 °C
- Useful capacity: 205 L
- Interior dimensions (W×D×H): 790 × 520 × 500 mm
- Temperature constancy: ±3 K
- Technical Information Sheet:
Recently viewed
You may also like
Questions about LAUDA Versafreeze VF 20085 C Chest Freezer 230 V; 50 Hz
What is this article?
LAUDA Versafreeze VF 20085 C Chest Freezer 230 V; 50 Hz is the article on this page. Luminix Health distributes Lauda for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Lab instruments.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
