Description

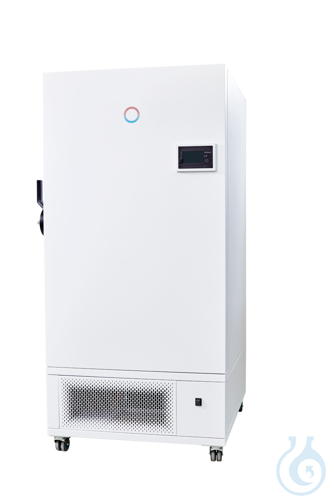

LAUDA Versafreeze VF 70085 ultra-low temperature freezer is a laboratory upright freezer for long-term storage and quality assurance of organic substances and other materials, supplied with an integrated water-cooled condenser that reduces heat release into the room (on-site cooling-water supply required). It covers −86 to −50 °C with temperature constancy of ±2 K and homogeneity of 6 K at −86 °C, and provides a 731 L stainless-steel interior divided into seven compartments with individual insulated doors. Vacuum insulation maximises storage capacity inside external dimensions of 980 × 1179 × 1965 mm. A densely laid cooling coil delivers rapid freezing—from 20 °C to −86 °C in 7 h—and excellent chamber uniformity. The maintenance-free cascade refrigeration plant uses fully hermetic high-performance compressors and natural refrigerants R-290 and R-170. Comfortable 4,3'' touchscreen control, password-protected setpoints, electronic alarm with potential-free contact, battery-backed display and alarm, built-in data logger, Ethernet (IIoT ready) and RS 485 interfaces come from manufacturer Lauda. Two 13 mm sensor feed-throughs and a magnetic door-seal system that prevents freeze-up support routine laboratory work. Net weight 387 kg; energy consumption 15,5 kWh/d at −80 °C; mains 230 V; 50 Hz with angled Schuko plug.
This article is part of Condensers, in Distillation & extraction glassware.
Key features
- Pack size: 1 piece
- Working temperature range: −86 … −50 °C
- Useful volume: 731 L
- Condenser cooling: water (integrated)
- Cool-down time: 20 °C to −86 °C in 7 h
- Energy consumption: 15.5 kWh/d at −80 °C
- Manufacturer: Lauda
- UNSPSC: 41103020
- Temperature constancy: ±2 K
- Ambient temperature: 15...28 °C
- Exterior dimensions: 980 × 1179 × 1965 mm
- Weight: 387 kg
- Voltage: 230 V; 50 Hz
- Technical Information Sheet:
