Description

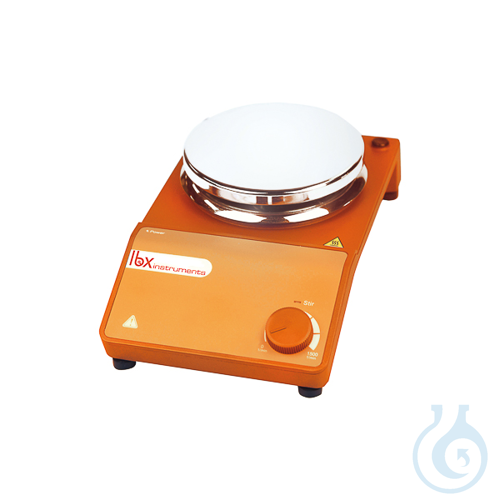

Magnetic stirrer without heating, LBX Instruments model S20 with ceramic plate, is a laboratory instrument for mixing volumes up to 20 L. The adjustable speed range runs from 0 to 1500 min⁻¹, driven by a motor with electronic speed control that holds a constant rate even when the load changes. Increased magnetic adhesion helps keep the stir bar from slipping during operation, while the brushless motor supports a longer service life. The unit is intended for beakers with a diameter of 135 mm and magnetic stir bars from 30 mm to 80 mm in length; one stir bar is included. Overall dimensions are 280 × 160 × 85 mm (L × W × H). It operates on 200–240 V / 50–60 Hz and meets protection class IP42 (DIN EN60529). This model from manufacturer Labbox is offered as a single unit with a two-year warranty and a net weight of 2,800 kg, suited to routine non-heated stirring work on the bench.
This article is part of Magnetic stirrers, in Stirring, shaking & mixing.
Key features
- Pack size: 1 pc
- Speed range: 0–1500 min⁻¹
- Stirring capacity: 20 L
- Plate material: Ceramic
- Protection class: IP42 (DIN EN60529)
- EAN: 8434868045118
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about Magnetic stirrer without heating, LBX Instruments, S20 series, ceramic coated pl
What is this article?
Magnetic stirrer without heating, LBX Instruments, S20 series, ceramic coated pl is the article on this page. Luminix Health distributes Labbox for laboratory use. It sits in Magnetic stirrers, inside Stirring, shaking & mixing, in Lab instruments.
A magnetic stirrer is the motor and the plate under the flask. Many also heat. The stirring capacity is the litres of a water-like liquid it can turn, and a viscous liquid defeats a rating that was measured on water.
Stirring keeps a mixture uniform or helps a solid dissolve. A magnetic stirrer spins a bar inside a closed vessel. An overhead stirrer drives a shaft when the liquid is viscous or the volume is large. A vortex mixer agitates a tube. A shaker moves a whole rack or a plate. The shape of the impeller and the speed decide whether the liquid turns over or merely spins. The vessels being stirred are indexed under ISO laboratory glassware.
