Description

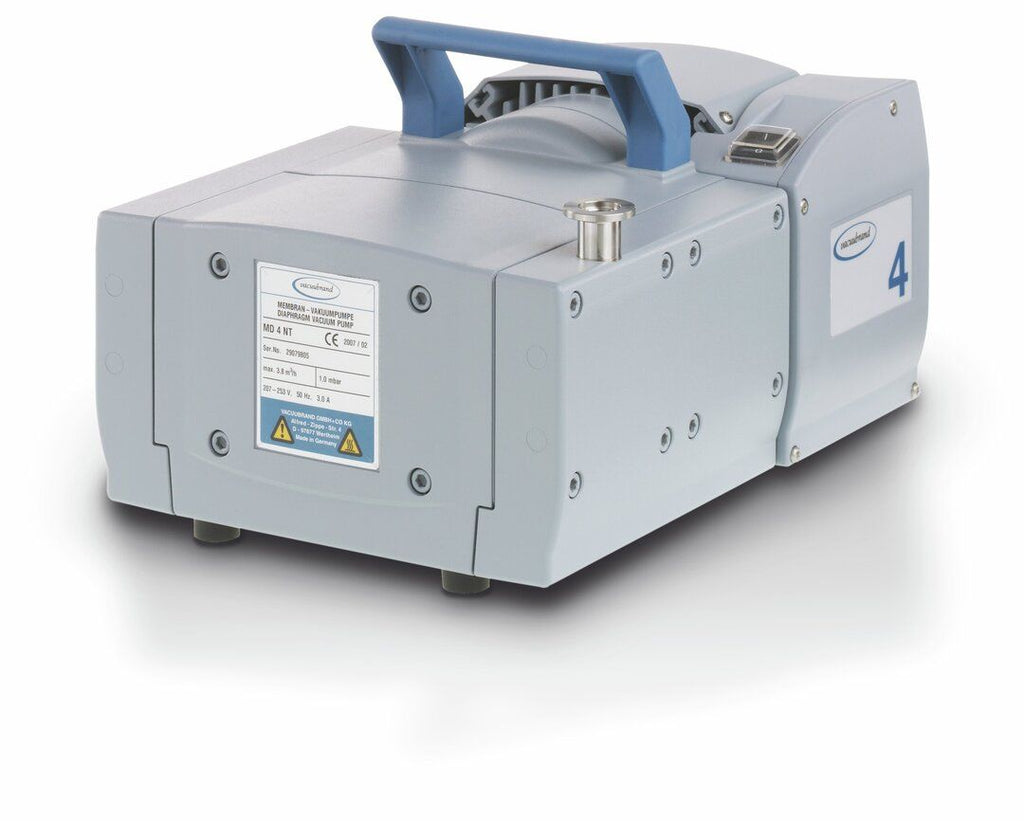

The MD 4 NT is a three-stage diaphragm pump intended for laboratory vacuum applications, carrying NRTL certification (C/US) and configured for 230 V / 50-60 Hz supply with a UK/IN power cable. This membrane pump is delivered as a single-piece unit and forms part of the MD 4 NT series employed in research and analytical environments. The instrument from manufacturer VACUUBRAND originates in Germany and is supplied ready for connection through the included UK/IN mains cable. Net weight is 16.9 kg and gross weight is 19.7 kg, consistent with a durable laboratory construction for bench or system use. The three-stage diaphragm arrangement delivers the vacuum performance characteristic of this model, while the C/US NRTL marking documents the stated certification. Electrical rating remains 230 V / 50-60 Hz for the UK/IN cable variant. Facilities that need a certified three-stage diaphragm pump with UK/IN power connection obtain a clearly defined unit that matches the manufacturer specification for voltage, staging and regional cabling without additional claims.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 piece
- Type: Three-stage diaphragm pump
- Certification: NRTL C/US
- Operating voltage: 230 V / 50-60 Hz
- Power cable: UK/IN
- Manufacturer: VACUUBRAND
- Net weight: 16.9 kg
- UNSPSC: 41104900
- Voltage: 230 V, 50-60 Hz

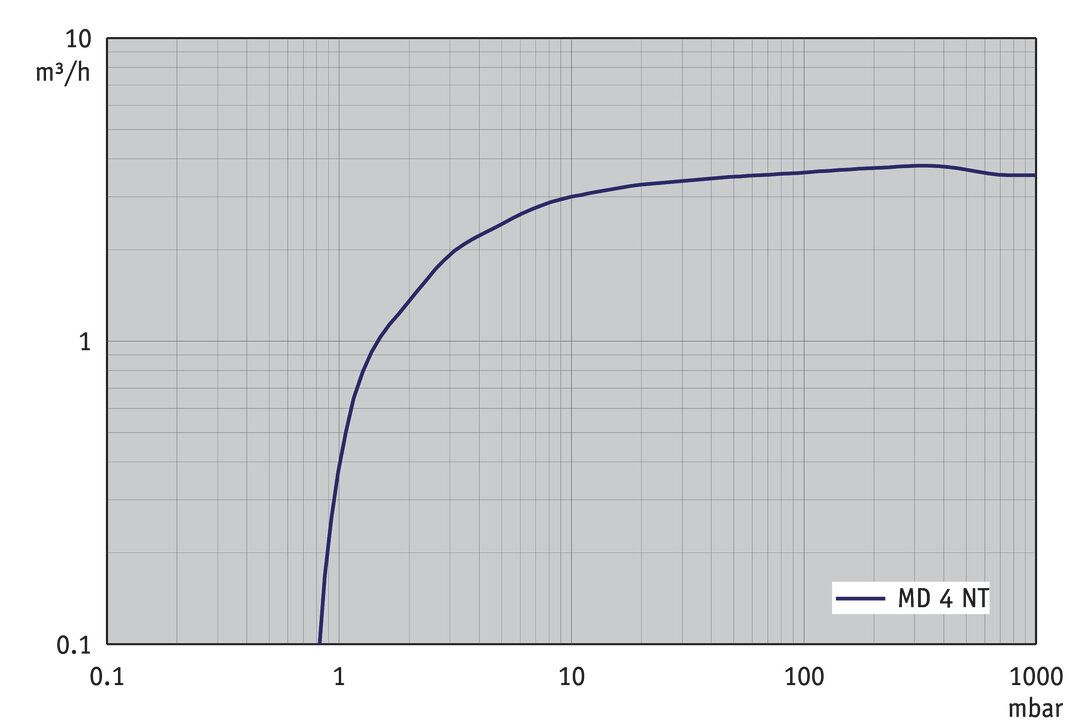

- Max. pumping speed 50 Hz: 3.8 m³/h

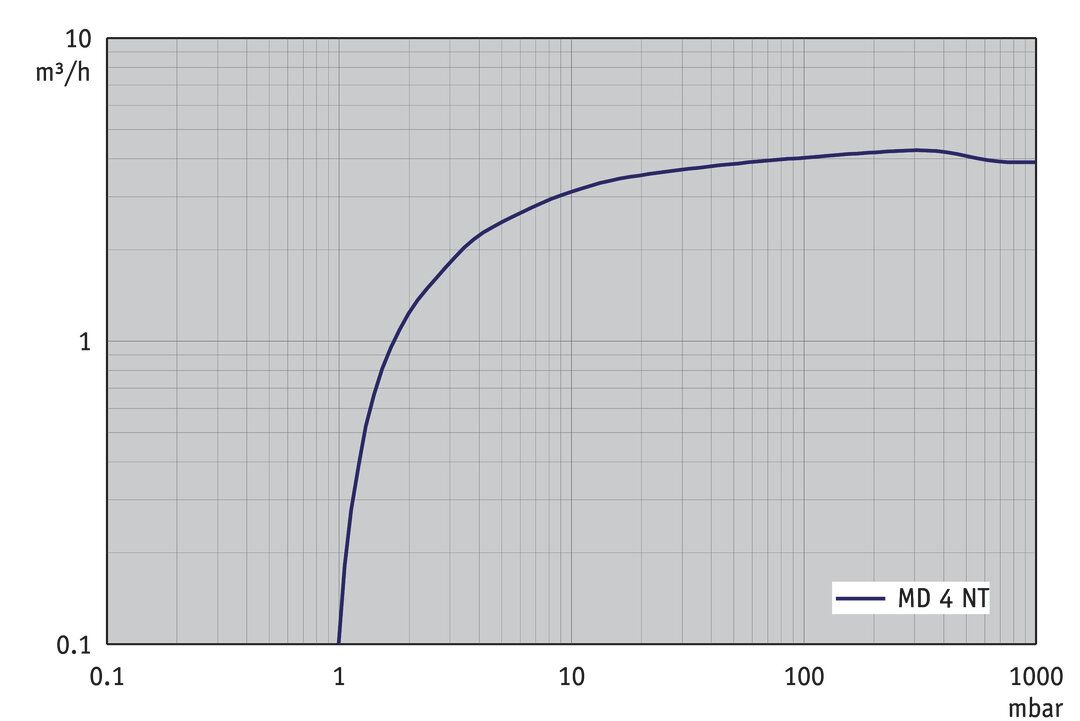

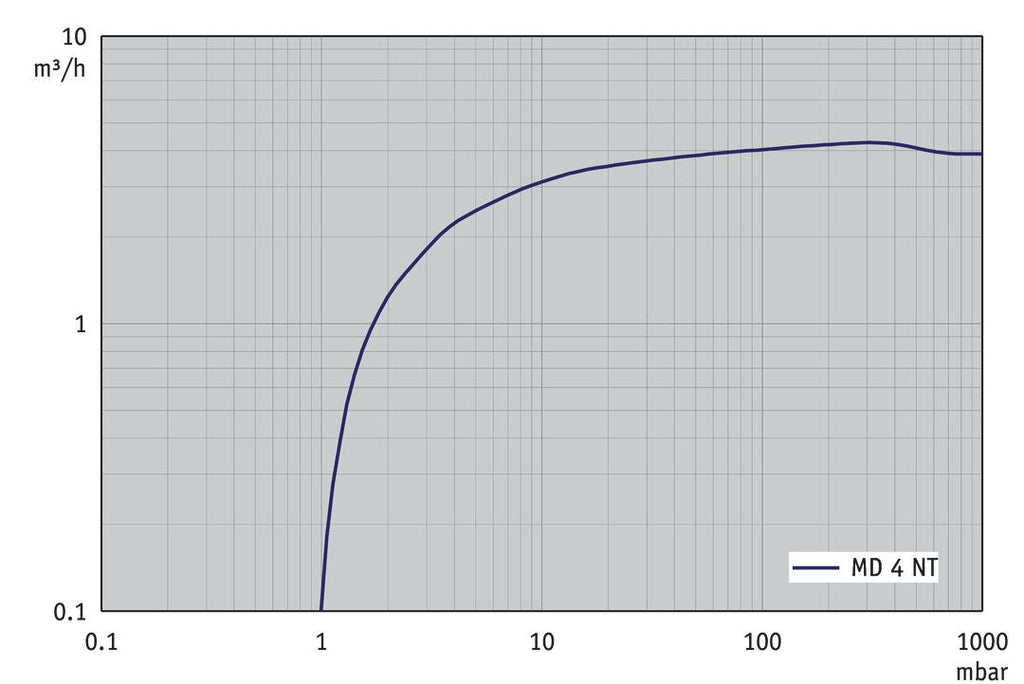

- Max. pumping speed 60 Hz: 2.5 cfm

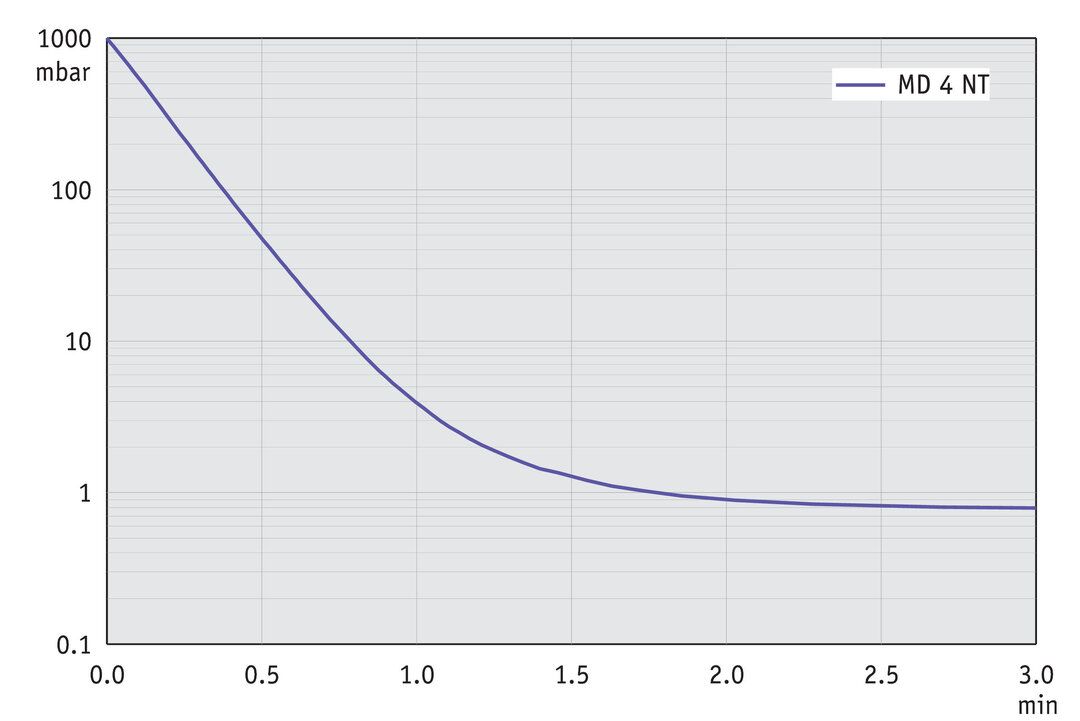

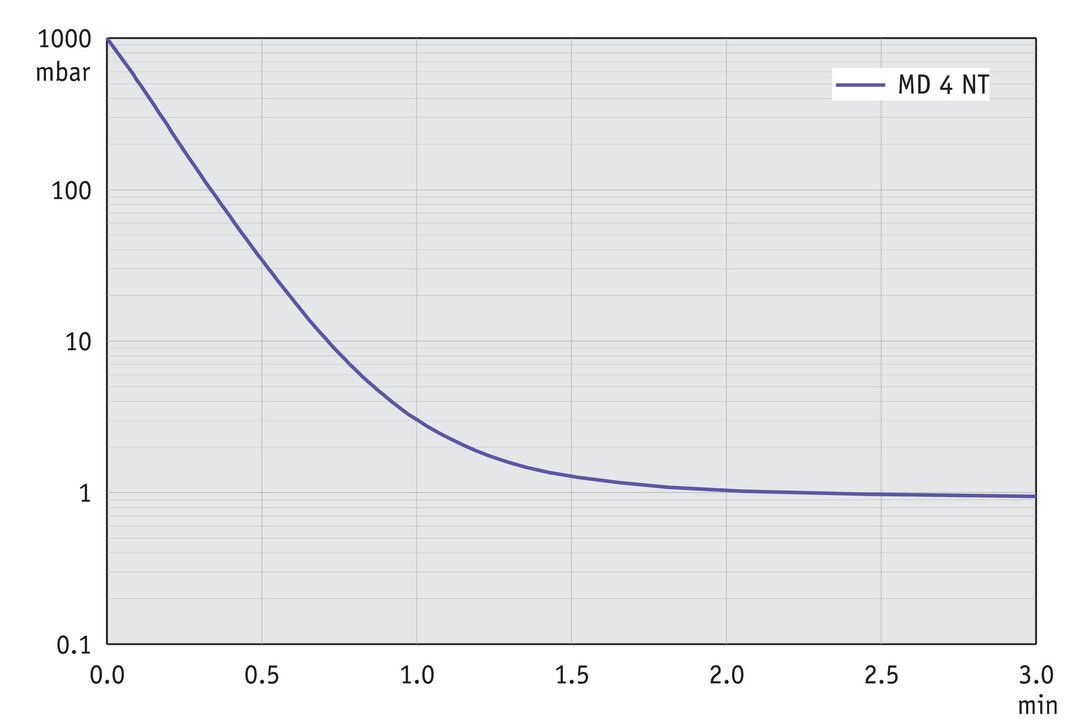

- Ultimate vacuum: 1 mbar / 0.75 torr
- Number of heads: 4
- Number of stages: 3
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: small flange KF DN 16
- Outlet connection: Silencer / G1/4"
- Rated motor power: 0.25 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40

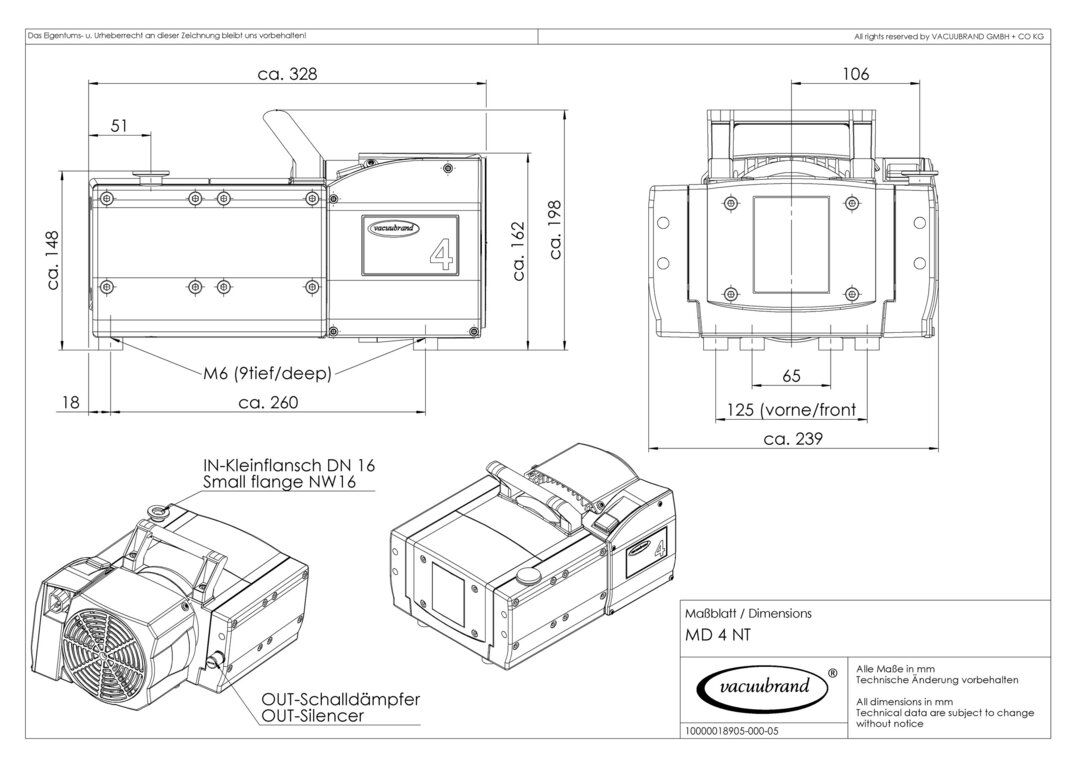

- Dimension L in mm: 328 mm
- Dimension B in mm: 239 mm
- Dimension H in mm: 198 mm
- Weight: 16.4 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Items supplied: Pump completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 230 V
- Mains frequency 1: 50-60 Hz
- Technical Information Sheet:
