Description

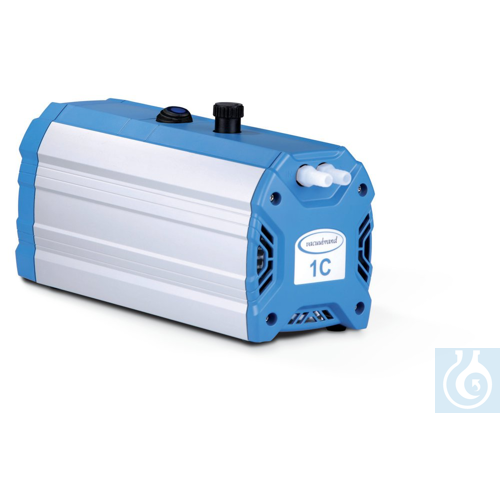

MZ 1C, CN is a two-stage chemistry diaphragm pump intended for laboratory vacuum work with chemical media. The unit is specified for 220-230 V operation at 50/60 Hz and carries NRTL certification for the C/US markets. It is supplied complete with a CN power cable. This chemistry membrane pump from manufacturer VACUUBRAND is built as a compact, chemically resistant diaphragm design suited to everyday laboratory vacuum tasks. The two-stage configuration forms the core of the MZ 1C series. Net weight is 6.5 kg and gross weight is 8.7 kg; the pump is delivered as 1 pc. Country of origin is Germany. The model designation MZ 1C, CN identifies the specific voltage, certification and cable variant. All stated electrical, mechanical and certification data correspond directly to the manufacturer information for this article. The pump belongs to the standard laboratory equipment category and is ready for integration into existing vacuum setups that require a two-stage chemistry diaphragm pump with the listed electrical characteristics.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Type: Chemistry diaphragm pump
- Stages: Two-stage
- Voltage: 220-230 V 50/60 Hz
- Certification: NRTL C/US
- Power cable: CN
- Manufacturer: VACUUBRAND
- UNSPSC: 41104900
- Max. pumping speed 50 Hz: 0.75 m³/h
- Max. pumping speed 60 Hz: 0.5 cfm
- Ultimate vacuum: 12 mbar / 9 torr
- Ultimate vacuum with gas ballast: 20 mbar / 15 torr
- Number of heads: 2
- Number of stages: 2
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.06 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40
- Dimension L in mm: 312 mm
- Dimension B in mm: 121 mm
- Dimension H in mm: 170 mm
- Weight: 6.7 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Items supplied: Pump completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 220-230 V
- Mains frequency 1: 50-60 Hz
- Technical Information Sheet:
