Description
The MZ 2D NT is a two-stage diaphragm pump for laboratory vacuum applications. This multi-voltage model is certified for NRTL C/US and supports 200-230 V / 50-60 Hz, 100-115 V / 50-60 Hz and 120 V / 60 Hz. Supplied as a single-piece unit from manufacturer VACUUBRAND, the pump has a net weight of 11.7 kg and a gross weight of 13.8 kg. Produced in Germany, the MZ 2D NT brings the two-stage membrane pumping design of the NT series to laboratories that require flexible mains compatibility across common voltage and frequency ranges. It belongs to the laboratory materials category and is intended for vacuum generation in standard laboratory environments. The listed electrical ranges define the admissible supply conditions for correct installation and operation. Two-stage construction characterises the pumping principle of this diaphragm pump. Delivery comprises one complete pump assembly ready for laboratory integration. The published net and gross weights support handling, shipping and placement planning on the bench or within a system configuration.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Product type: Two-stage diaphragm pump
- Voltage: 200-230 V / 50-60 Hz, 100-115 V / 50-60 Hz, 120 V / 60 Hz
- Certification: NRTL C/US
- Stages: Two-stage
- Manufacturer: VACUUBRAND
- Net weight: 11.7 kg
- UNSPSC: 41104900

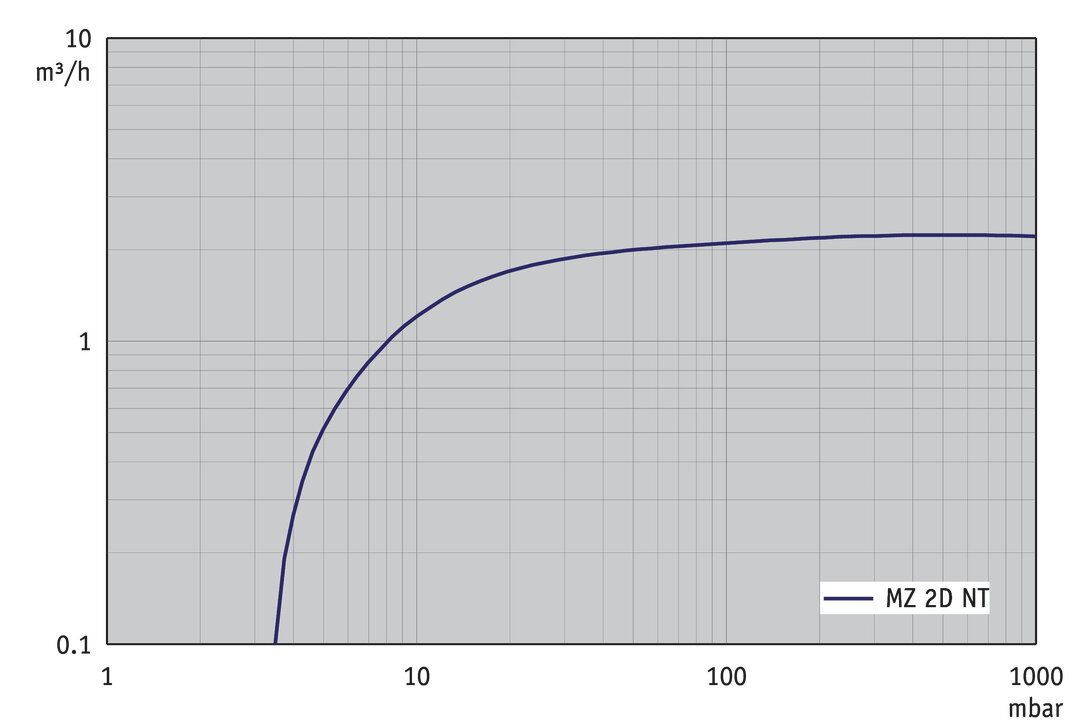

- Max. pumping speed 50 Hz: 2.3 m³/h
- Max. pumping speed 60 Hz: 1.5 cfm
- Ultimate vacuum: 4 mbar / 3 torr
- Number of heads: 2
- Number of stages: 2
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: small flange KF DN 16
- Outlet connection: Silencer / G1/4"
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40
- Dimension L in mm: 246 mm
- Dimension B in mm: 242 mm
- Dimension H in mm: 198 mm
- Weight: 11.4 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 47 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Items supplied: Pump completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 200-230 V
- Rated mains voltage range 2: 100-115 V
- Rated mains voltage range 3: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 50-60 Hz
- Mains frequency 3: 60 Hz
- Technical Information Sheet:
