Description

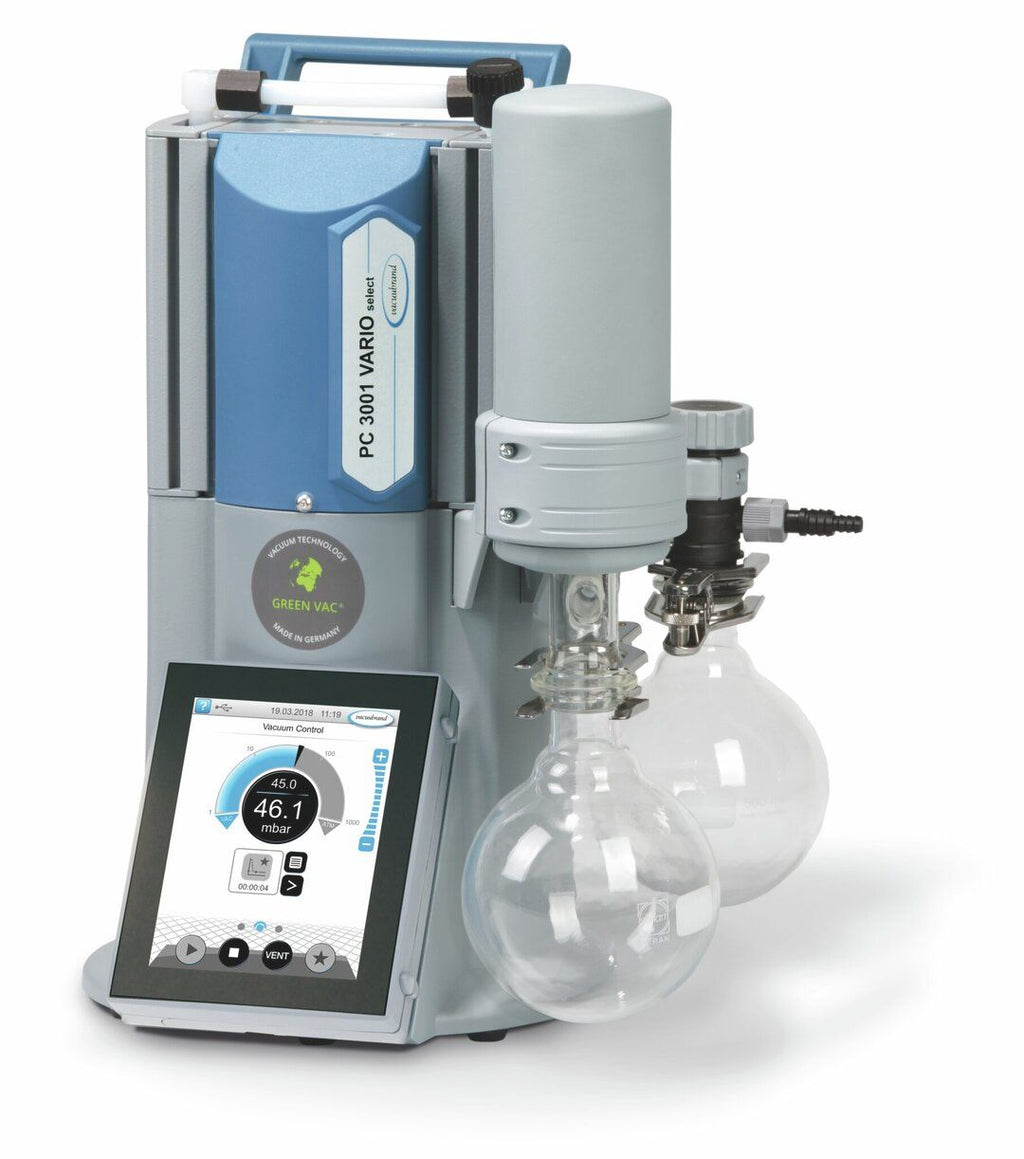

PC 3001 VARIO select is a VARIO chemistry pump stand configured with a UK power cable for laboratory vacuum applications. The unit is built on the PC 3001 VARIO select platform and supports dual-range operation at 100-120 V and 200-230 V, 50-60 Hz. NRTL certification C/US confirms compliance with the stated electrical and safety requirements for the indicated markets. As a complete chemistry pump stand, it integrates the components needed for controlled vacuum generation in chemical laboratory environments while remaining suitable for typical bench or system installation. This version from manufacturer VACUUBRAND is supplied as a single piece and is fitted with the UK mains cable to match regional socket standards. Net weight of the assembly is 10.118 kg and gross weight is 12 kg, reflecting a robust construction for continuous laboratory service. Manufactured in Germany and classified under laboratory materials, the pump stand carries WEEE registration number DE11956459. Electrical parameters, regional cable selection and NRTL marking together provide a ready-to-connect solution for chemistry vacuum work that requires stable performance across the specified voltage and frequency ranges.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Type: VARIO chemistry pump stand
- Power cable: UK
- Voltage range: 100-120 V / 200-230 V / 50-60 Hz
- Certification: NRTL C/US
- Manufacturer: VACUUBRAND
- Net weight: 10.118 kg
- UNSPSC: 41104900

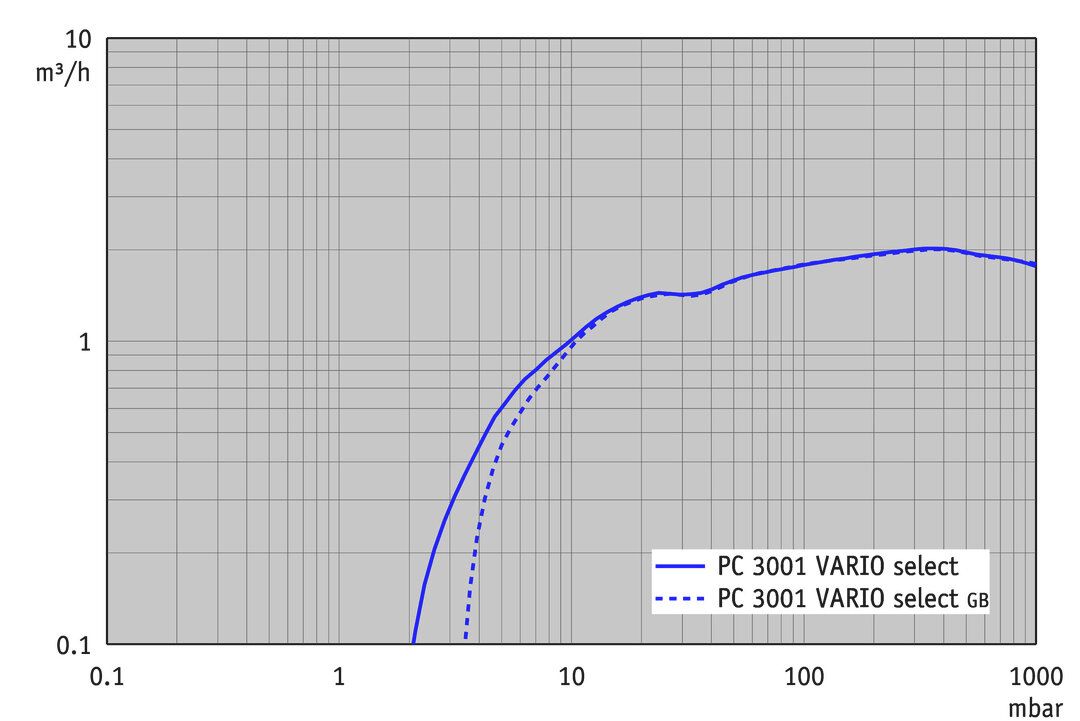

- Max. pumping speed 50 Hz: 2 m³/h
- Max. pumping speed 60 Hz: 1.18 cfm

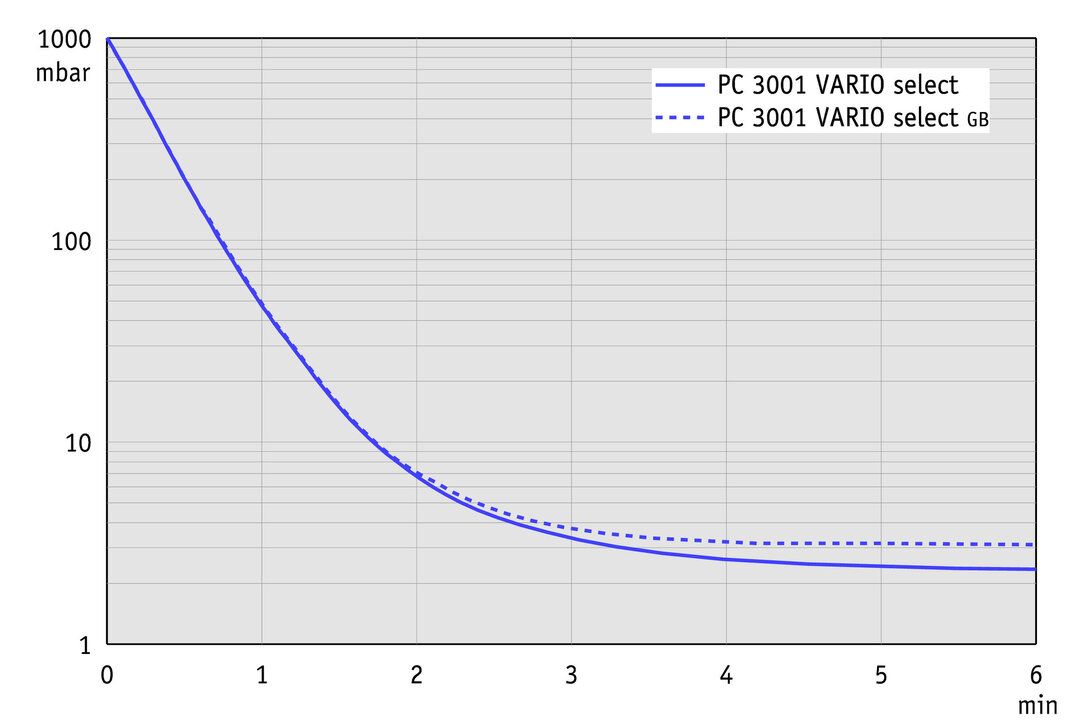

- Ultimate vacuum: 2 mbar / 1.5 torr
- Ultimate vacuum with gas ballast: 4 mbar / 3 torr
- Number of heads: 4
- Number of stages: 3
- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 6-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.16 kW
- Protection class IEC 60529: IP 20

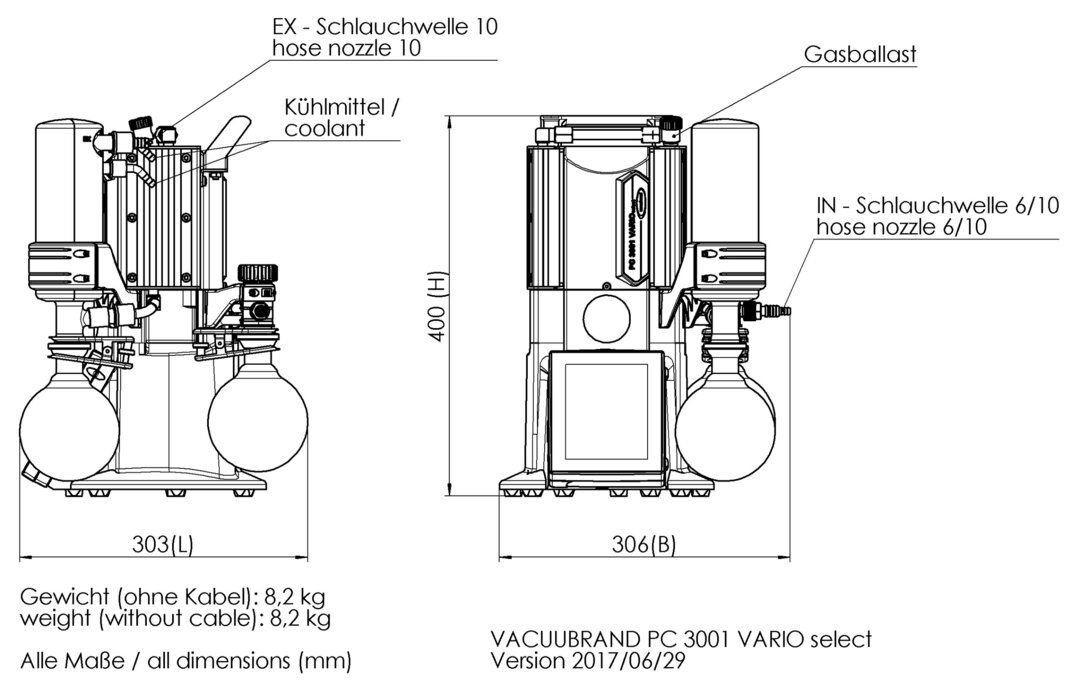

- Dimension L in mm: 303 mm
- Dimension B in mm: 306 mm
- Dimension H in mm: 400 mm
- Weight: 8.2 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 42 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Items supplied: Pumping unit completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 200-230 V
- Rated mains voltage range 2: 100-120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 50-60 Hz
- Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
- Technical Information Sheet:
