Description
PC 3004 VARIO select is a VARIO chemistry pump stand supplied as a complete laboratory unit with CH power cable. It operates on 200-230 V at 50-60 Hz and is intended for vacuum generation tasks in chemical laboratory environments. The system is delivered as 1 pc(s) and presents a net weight of 21.6 kg with a gross weight of 27 kg. Produced in Germany, this model from manufacturer VACUUBRAND combines the VARIO control concept with a dedicated chemistry pump stand configuration. The included CH mains cable ensures direct compatibility with Swiss socket standards, allowing straightforward installation in regional laboratory infrastructures. Its substantial construction supports stable placement on the bench or in dedicated pump areas while maintaining the electrical characteristics required for continuous laboratory service. The PC 3004 VARIO select addresses typical needs for controlled vacuum in solvent handling, evaporation and related chemical processes. Laboratory teams obtain a ready-to-connect pumping unit that matches the stated voltage range and regional cable specification without further adaptation. The overall design reflects the practical requirements of modern lab material setups where reliable vacuum performance and correct regional power connection are essential.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc(s)
- Type: VARIO chemistry pump stand

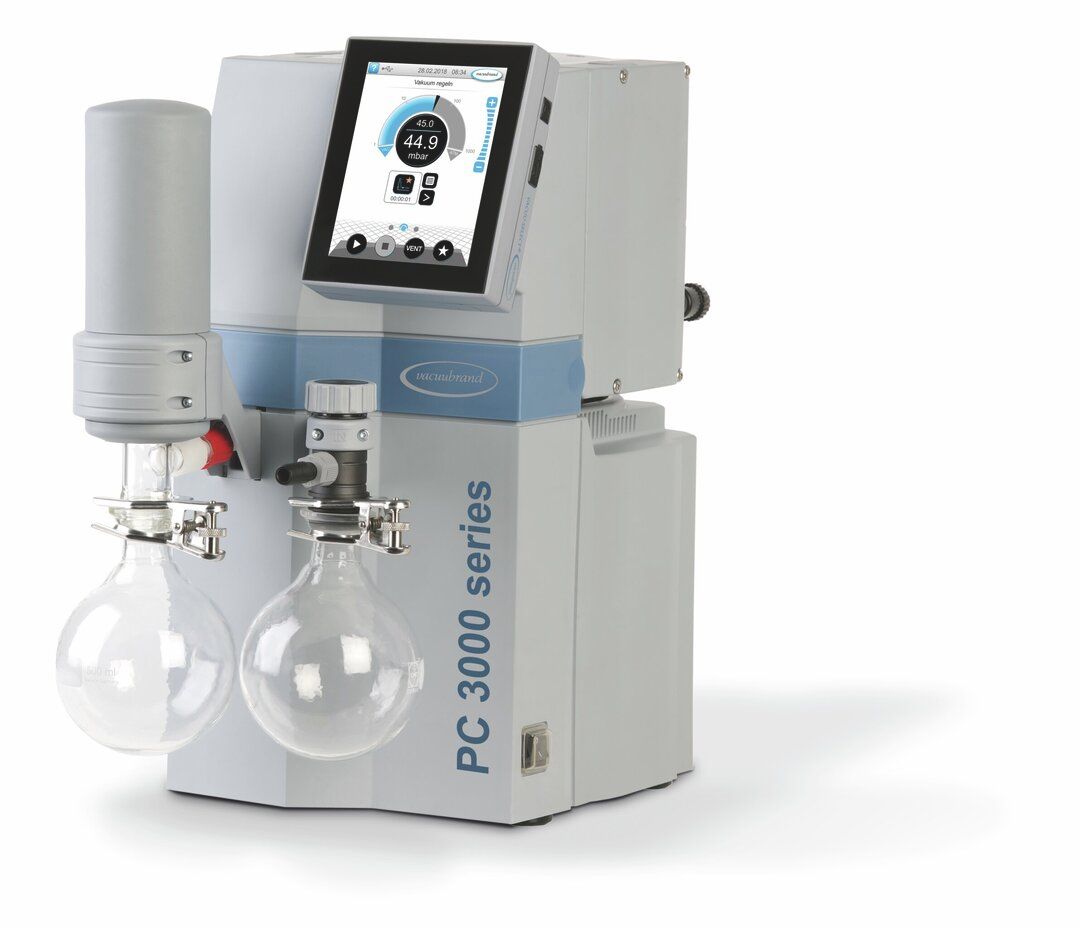

- Model: PC 3004 VARIO select
- Voltage: 200-230 V / 50-60 Hz
- Power cable: CH
- Manufacturer: VACUUBRAND
- Net weight: 21.6 kg
- UNSPSC: 41104900

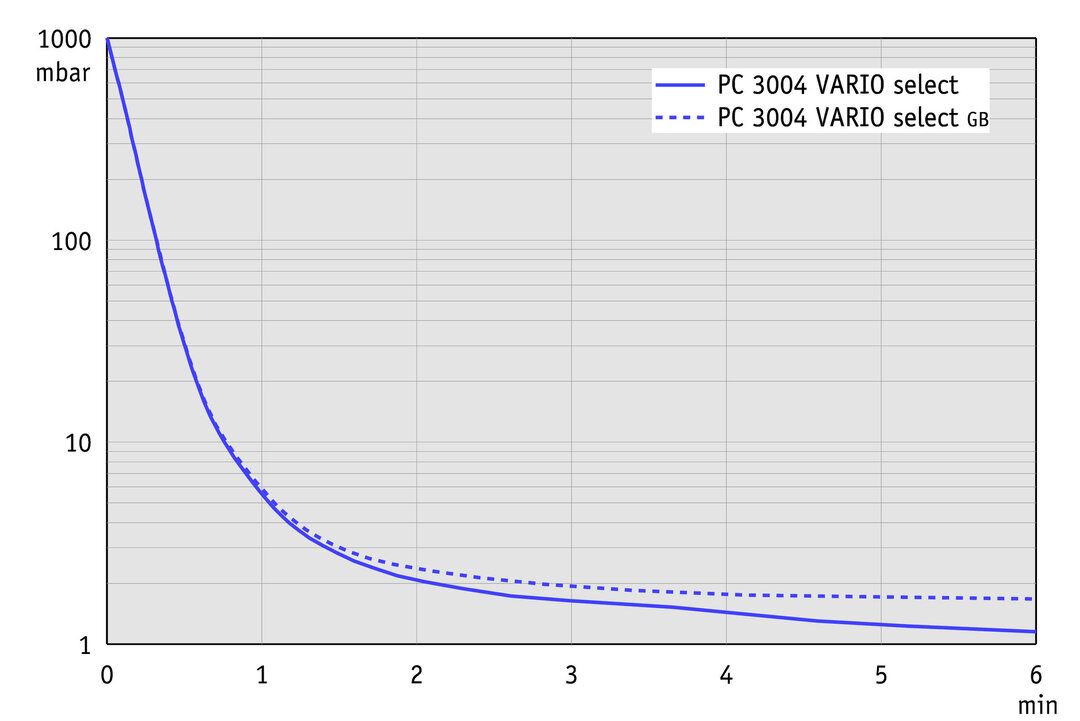

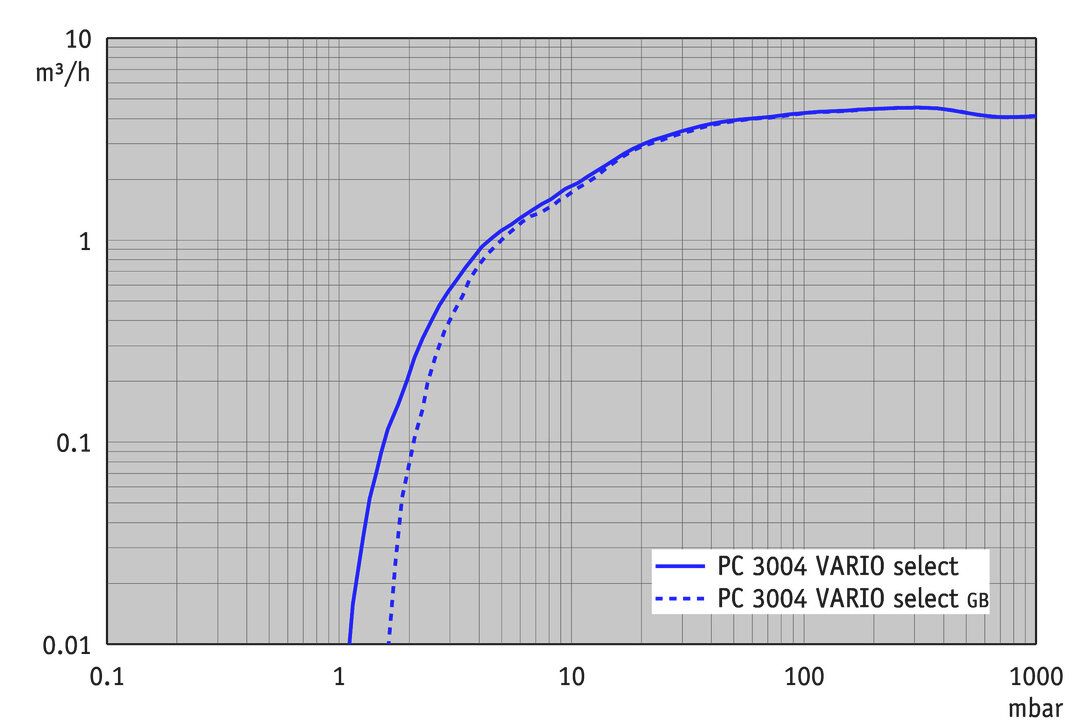

- Max. pumping speed 50 Hz: 4.6 m³/h
- Max. pumping speed 60 Hz: 2.7 cfm
- Ultimate vacuum: 1.5 mbar / 1.1 torr
- Ultimate vacuum with gas ballast: 3 mbar / 2.2 torr
- Number of heads: 4
- Number of stages: 3
- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.53 kW
- Protection class IEC 60529: IP 20

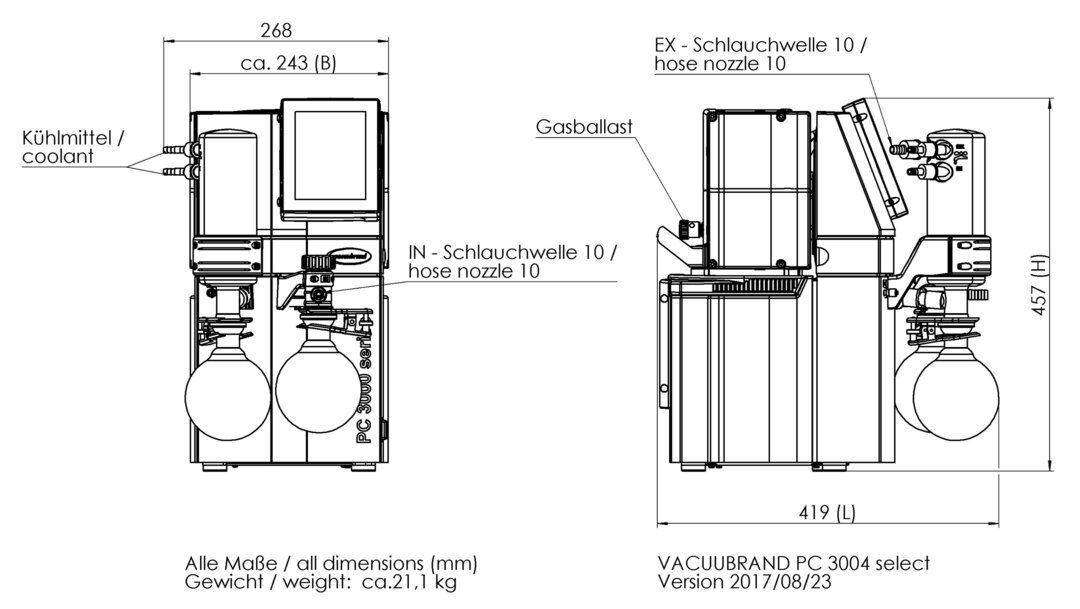

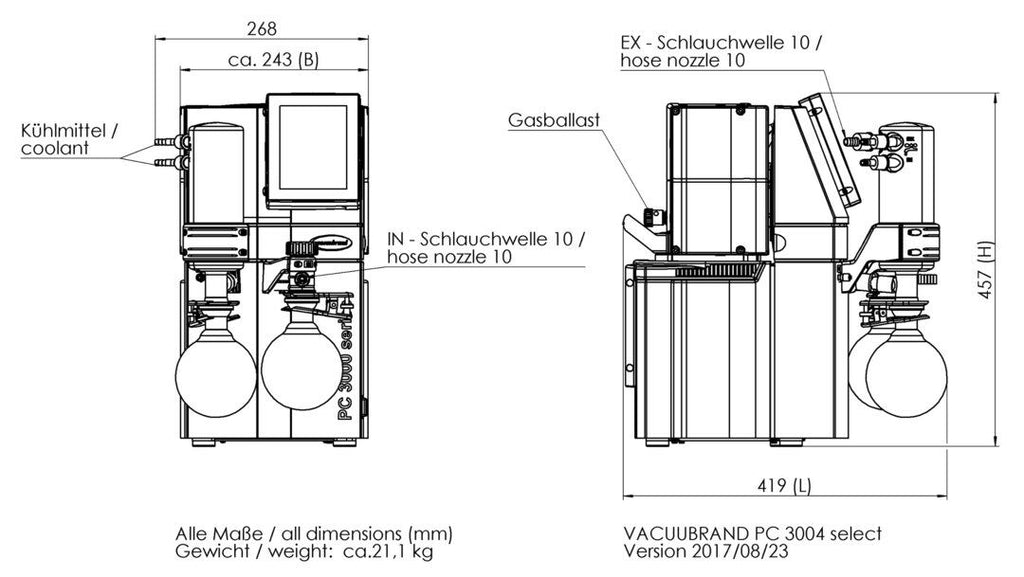

- Dimension L in mm: 419 mm
- Dimension B in mm: 243 mm
- Dimension H in mm: 457 mm
- Weight: 21.1 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 43 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: No
- Items supplied: Pumping unit completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 200-230 V
- Mains frequency 1: 50-60 Hz
- Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
- Technical Information Sheet:
