Description

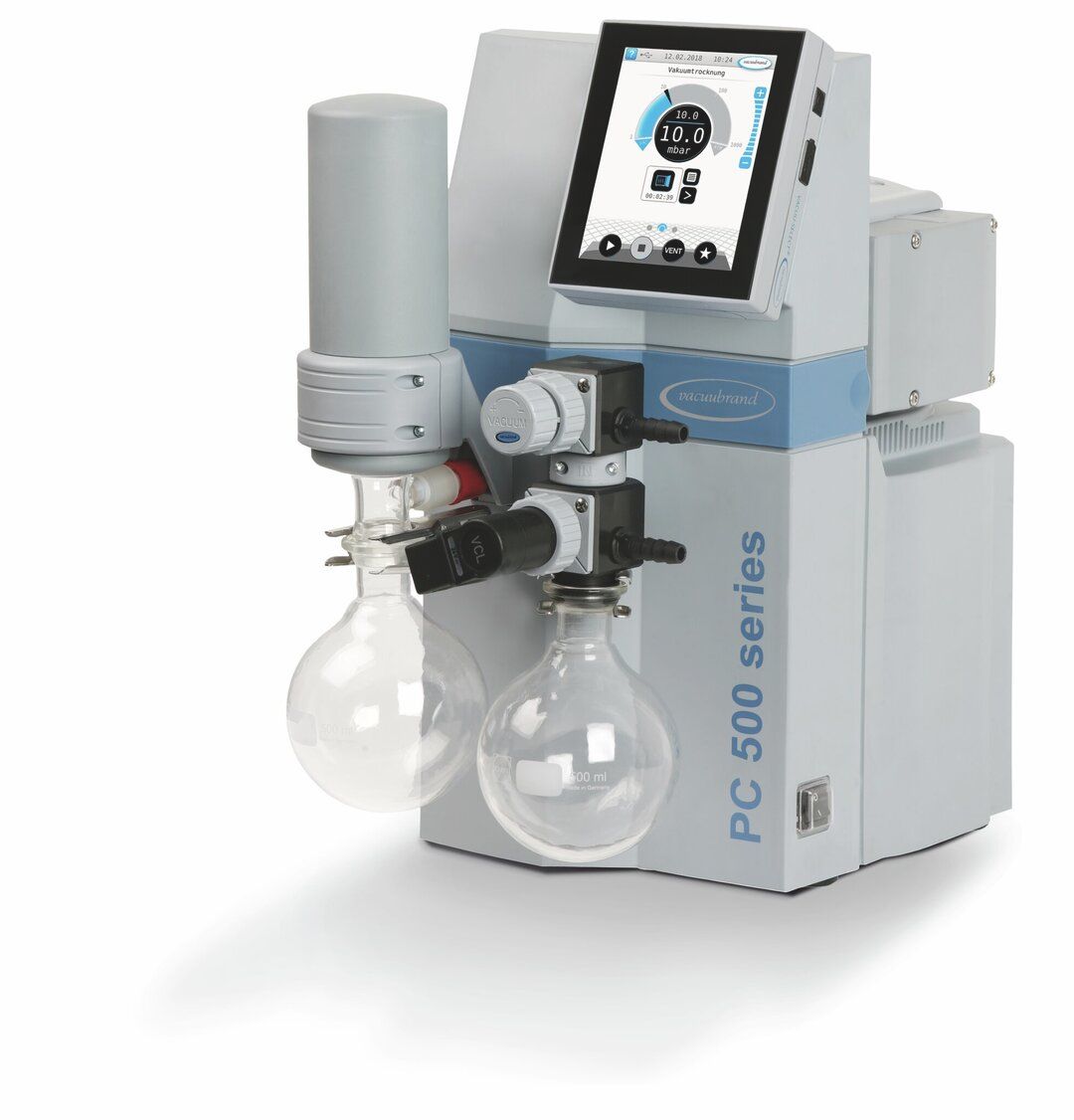

PC 511 select is a chemistry pump stand configured with the MZ 2C NT and intended for laboratory vacuum work. The system operates at 230 V / 50-60 Hz and is supplied complete with a CN power cable, allowing direct connection to standard CN mains outlets. Delivered as a single piece, the stand integrates the MZ 2C NT pump unit into a ready-to-install assembly suited to chemical laboratory environments. Net weight is 19 kg and gross weight is 24.7 kg, reflecting the solid construction of the complete unit. Originating from Germany and available from manufacturer VACUUBRAND, the PC 511 select chemistry pump stand brings together the specified pump module and regional electrical connection in one package. The WEEE registration number DE11956459 applies to the equipment. This configuration supports laboratories that require a chemistry pump stand matched to 230 V / 50-60 Hz supply and CN plug standards, simplifying installation and ensuring electrical compatibility from the outset. The single-unit pack size further streamlines handling and placement on arrival at the laboratory bench or technical area.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Product type: Chemistry pump stand
- Pump unit: MZ 2C NT
- Voltage: 230 V / 50-60 Hz
- Power cable: CN
- Manufacturer: VACUUBRAND
- Net weight: 19 kg
- UNSPSC: 41104900

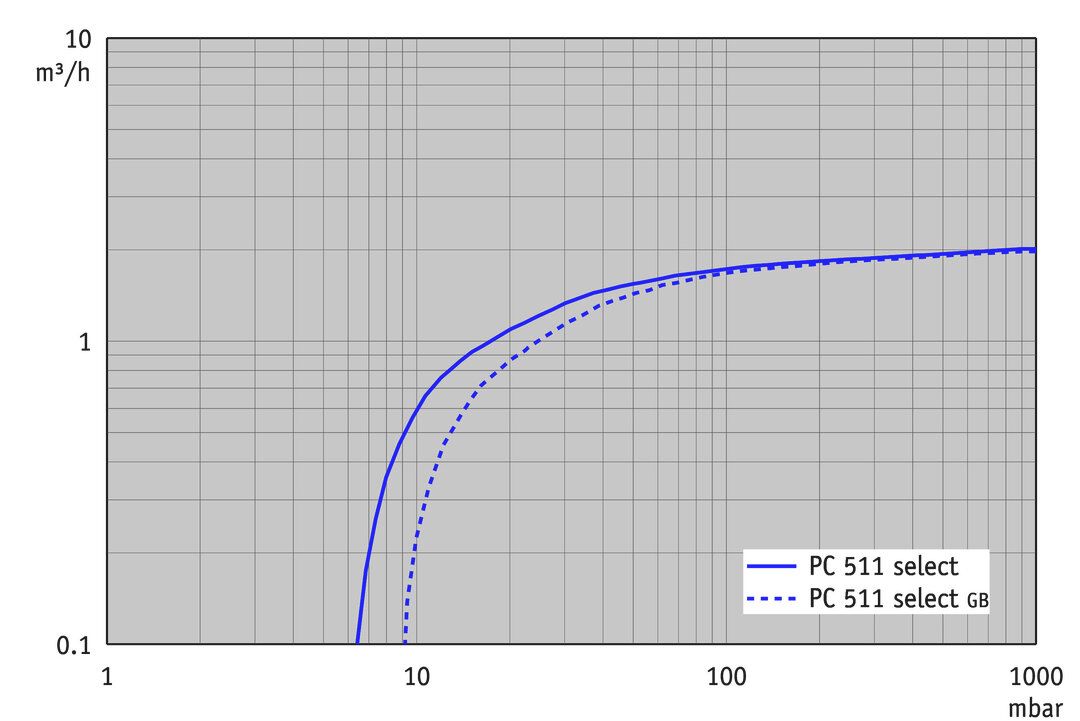

- Max. pumping speed 50 Hz: 2 m³/h

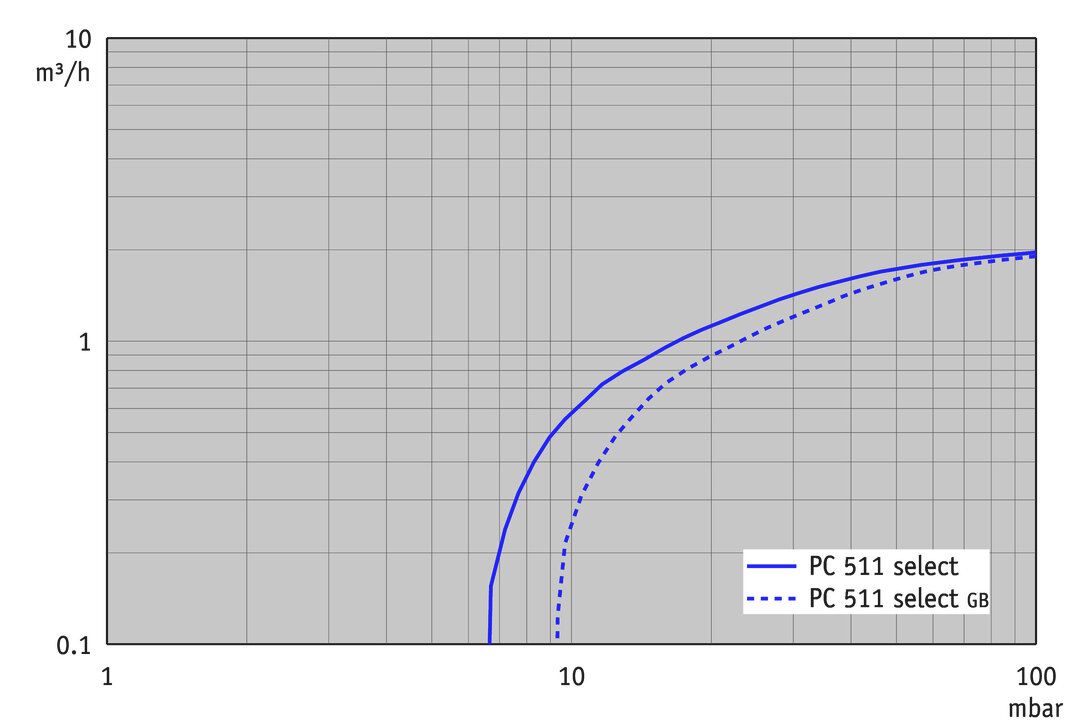

- Max. pumping speed 60 Hz: 1.4 cfm
- Ultimate vacuum: 7 mbar / 5 torr
- Ultimate vacuum with gas ballast: 12 mbar / 9 torr
- Number of heads: 2
- Number of stages: 2
- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: 2 x hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 20

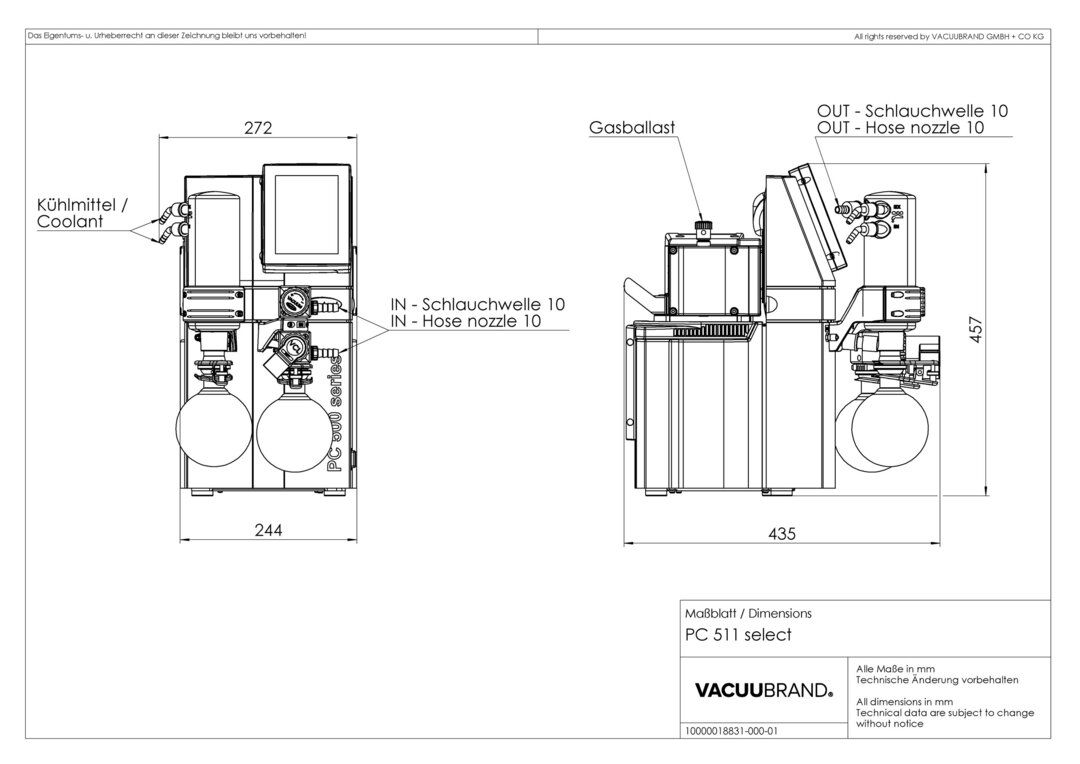

- Dimension L in mm: 435 mm
- Dimension B in mm: 272 mm
- Dimension H in mm: 457 mm
- Weight: 19.2 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: No
- Items supplied: Pumping unit completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 230 V
- Mains frequency 1: 50-60 Hz
- Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
- Technical Information Sheet:
