Description

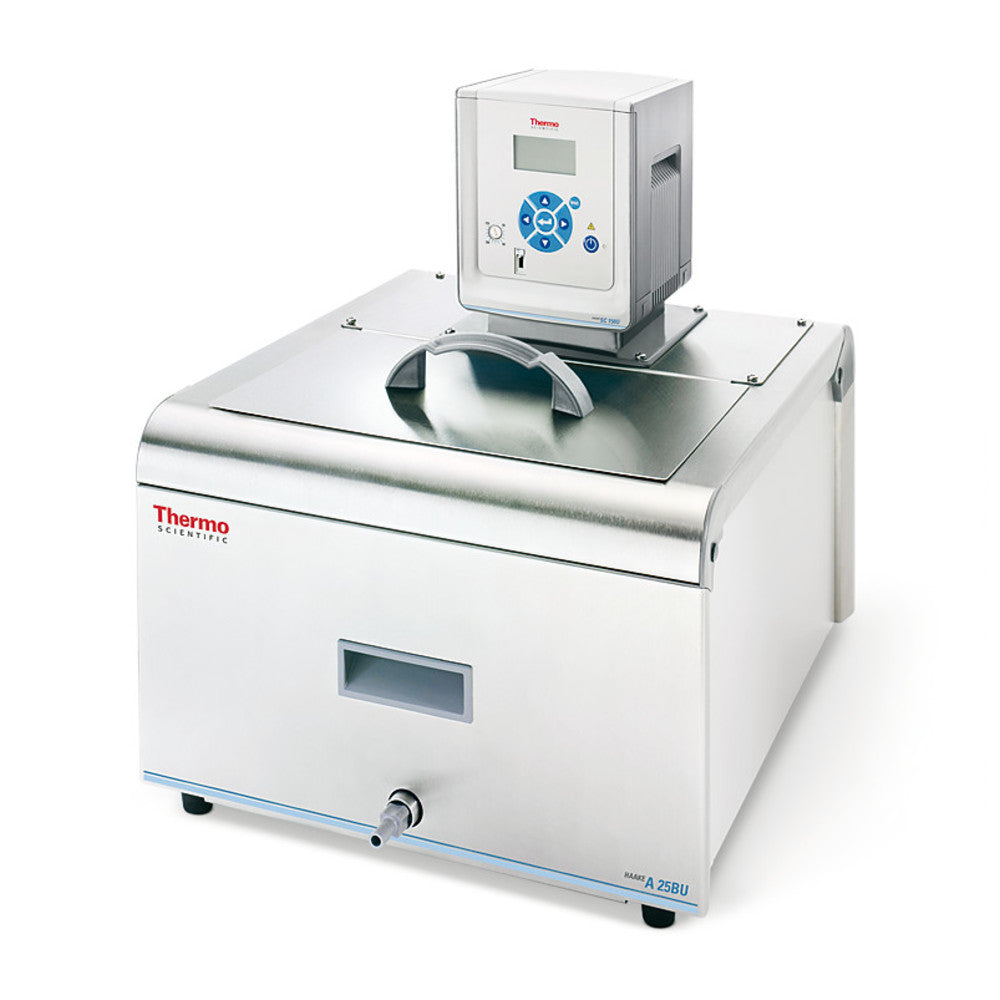

Refrigerating circulating AC 150-A25B, -25 - +150 °C, vol. 13 - 20 l, 2000 W, incl. circulating set, drain cock, bath tub lid
For temperature control in bath or for open and closed external circuits.
- Simultaneous display of set and actual temperature
- Display resolution 0.1 or 0.01 °C can be selected
- Stainless steel bath
- Thermostat heads can be turned invariably in 90° steps on the bath
- Drain cock (on the front)
- With integrated handles
- Connectors for tubes with 8 and 12 mm inner-Ø
- III (FL) = flammable liquids
Delivery incl. circulation set for external circulation and bath tub lid.
Technical Information
| Type | AC 150-A25B |
| Operating temperature | -25 to +150 °C |
| Temperature constancy | ±0,01 K |
| Display resolution | 0,1/0,01 °C |
| Heating output | 2000 W |
| Cooling capacity | 20 °C: 500 W |
| Max. pump pressure | 475 mbar |
| Max. flow | 20 l/min |
| Max. pump suction | 330 mbar |
| Bath volume | 13-20 l |
| Bath opening | 220 x 243 mm |
| Inner depth | 230 mm |
| Outer width | 324 mm |
| Outer depth | 541 mm |
| Outer height | 740 mm |
| Safety class | III (FL) |
