Description

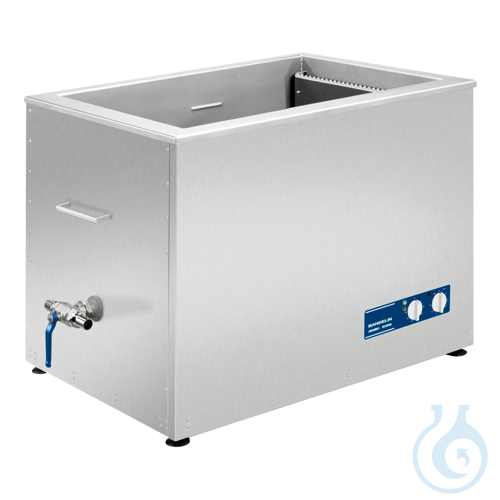

SONOREX TECHNIK RM 210 UH is a high-performance ultrasonic cleaning bath with integrated heating for industrial, service and maintenance work. Operating at 25 kHz, it combines a welded oscillating tank of 2 mm stainless steel 1.4404 with a generous internal working space of 750 × 650 × 500 mm and a bath volume of 270,0 l. Ultrasonic peak power is 8000 W at a rated power of 2000 W, while the heater supplies 7200 W for temperature-supported cleaning. An integrated overflow pocket allows connection of an oil separator so that removed oil films can be separated from the cleaning solution; a spray pipe directs floating oils from the liquid surface into this pocket. A level switch provides dry-run protection for the heater and ultrasonic transducers, and height-adjustable feet support stable installation. The modular concept from manufacturer Bandelin supports configurations from a single tank through to a complete cleaning line. Drain is via a three-way ball valve G 1 with hose and hose nozzles in galvanically coated brass, mounted on the left side. Net weight is 112,2 kg.
This article is part of Ultrasonic baths & cleaners, in Ultrasonic baths & lab washers.
Key features
- Pack size: 1 pkg
- Frequency: 25 kHz
- Tank volume: 270,0 l
- Ultrasonic peak power: 8000 W
- Heating power: 7200 W
- Rated power: 2000 W
- Technical Information Sheet:
Recently viewed
You may also like
Questions about SONOREX TECHNIK RM 180 H Rinsing bath with overflow and heating, Capacity/Volume
What is this article?
SONOREX TECHNIK RM 180 H Rinsing bath with overflow and heating, Capacity/Volume is the article on this page. Luminix Health distributes Bandelin for laboratory use. It sits in Ultrasonic baths & cleaners, inside Ultrasonic baths & lab washers, in Lab instruments.
An ultrasonic cleaner drops parts into a bath where collapsing bubbles scrub joints and bores. Tank volume and ultrasonic power are the ratings. A basket keeps items off the tank floor, where the transducers are. The liquid is usually water plus a cleaning concentrate, not a strong solvent, unless the tank is rated for it.
An ultrasonic bath cleans by cavitation: the sound collapses tiny bubbles against the surface and lifts soil out of joints a brush cannot reach. The chemistry of the bath liquid still matters. A laboratory glassware washer is the machine that replaces hand washing when the load is large or the result has to be repeatable. Rinse water quality decides whether the glass comes out spotted. The ware being washed is listed under ISO laboratory glassware.
