Description

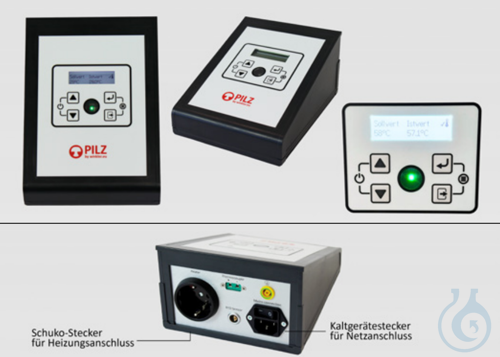

PILZ® laboratory bench temperature controller WRT570 is a universal electronic regulator for connecting thermal equipment such as heating mantles, heating tapes and similar devices via a Schuko socket and separate sensor inputs. Precise electronic temperature control with matching sensors supports more reproducible laboratory results; the unit can also replace conventional power controllers. Supply voltage is 90…260 VAC 50/60 Hz with a rated current of 6,3 A on resistive load. Protection rating is IP40, protection class I, and a durable hybrid relay is specified for more than 2,5 million switching cycles. Housing dimensions are 158 × 100 × 199 mm (W × H × D). Features include Fast Adaptive Tuning (FAT), simultaneous actual- and setpoint display, an additional safety cut-off relay, main on/off switch, earthing socket, multicolour signal LED and an LCD menu in DE, EN, FR, ES and JP. Sensor inputs accept thermocouples K, J, N, E and resistance sensors Pt100, Pt1000, Nickel 120, NTC10k and NTC100k via one Lemo size-1 socket and one miniature connector. This controller from manufacturer Winkler is supplied with a 1,5 m Schuko mains cable for direct bench use.
This article is part of Heating mantles, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Model: WRT570 (PILZ®)
- Supply voltage: 90…260 VAC 50/60 Hz
- Rated current: 6,3 A (resistive load)
- Protection: IP40, class I
- Dimensions (W×H×D): 158 × 100 × 199 mm
- Technical Information Sheet:
