Description

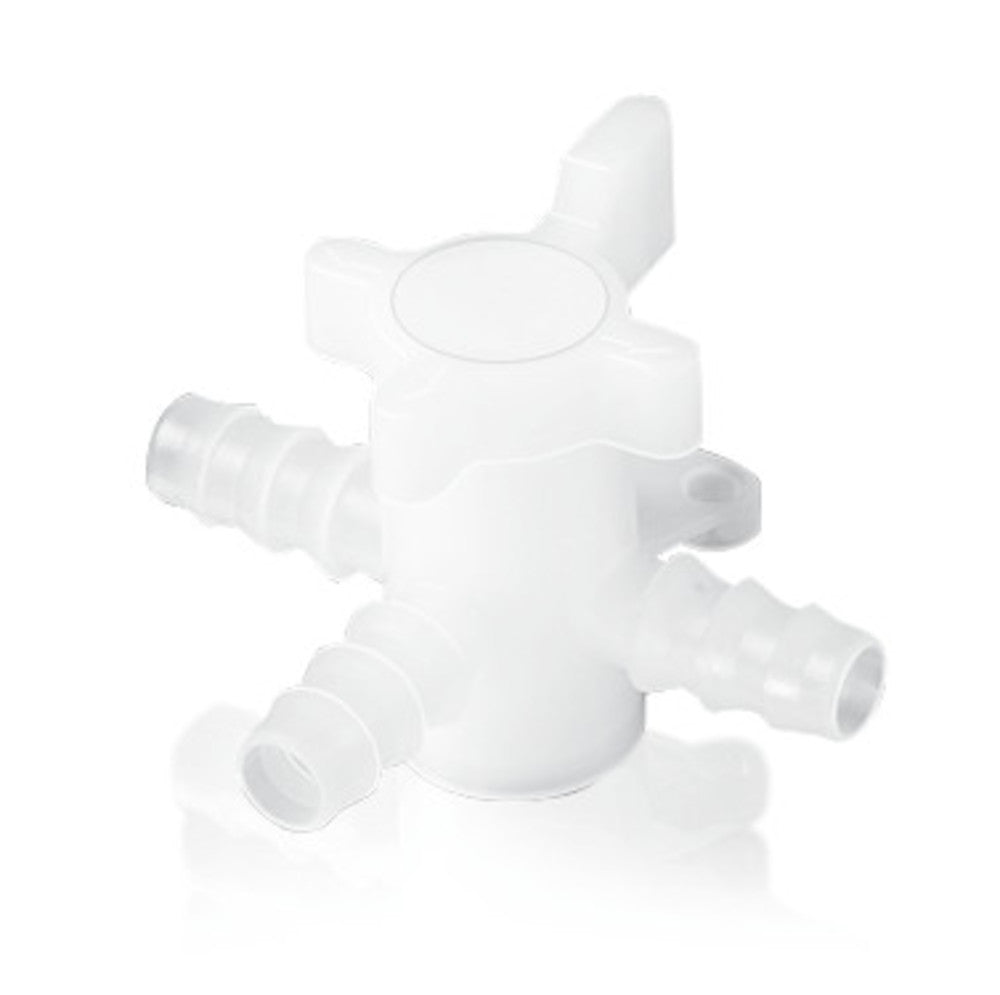

Three-way valve, PVDF, Ø 5-7 mm, NW 4 mm, white is a compact fluid-handling component for controlled liquid transfer in laboratory and process settings. It is used to open, shut off or change the direction of flow during media transfer without disconnecting tubing. The body is made from PVDF, which offers excellent chemical resistance, remains transparent in use and is suitable for food-contact applications. Tubing with an outer diameter of 5–7 mm connects to the ports; the valve provides a nominal width of NW 4 mm and an inner diameter of 6 mm. Maximum operating pressure is 1 bar, and the PVDF construction is specified for an operating temperature range of +0 to +40 °C. An integrated mounting plate supports straightforward installation on panels, benches or equipment frames. Supplied as a single white piece with a net weight of 0,026 kg, this three-way valve from manufacturer Bürkle suits sampling, dosing, recirculation and shut-off tasks in analytical laboratories, pilot plants and production lines where chemically robust, easy-to-install flow control is required. Its three-port layout helps operators reconfigure liquid paths quickly while maintaining a clean, compact fluid path.
This article is part of Stopcocks & valves, in Tubing, hoses & fittings.
Key features
- Pack size: 1 pc
- Material: PVDF
- Colour: white
- Hose connection: Ø 5-7 mm
- Nominal width: NW 4 mm
- EAN: 4067722021986
- Technical Information Sheet:
